The KING TONY 323012S is an inch-series 12-point deep socket from the 3230S family. It has a 3/8-inch square drive and a 3/8-inch socket size. The 63 mm body suits fastener positions that require a deeper socket; check both the drive size and the fastener's across-flats size before selecting your tool.

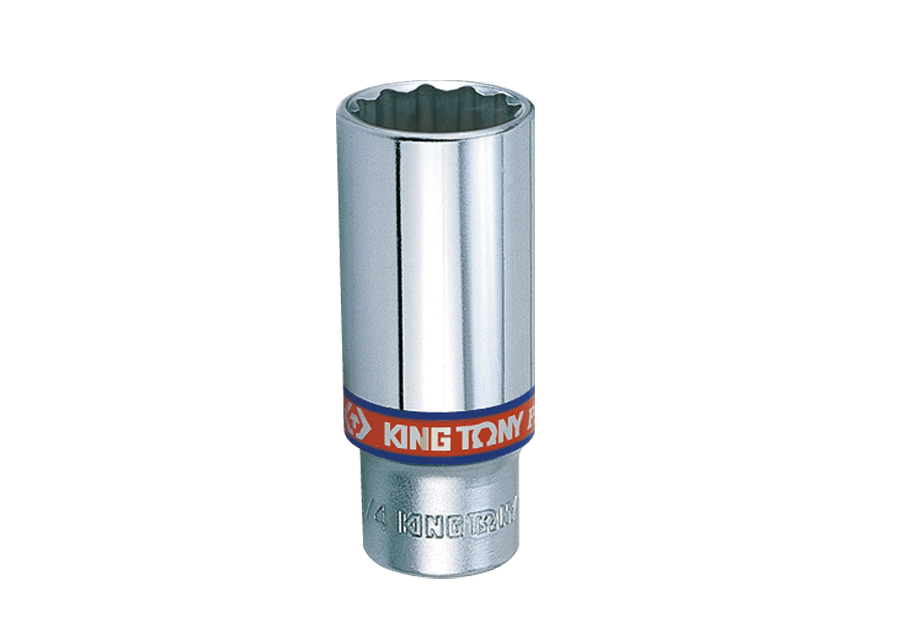

Manufacturer's KING TONY 3230S-series 12-point deep-socket representative photo, not an exact 323012S size photo; this listing has a 3/8-inch square drive and 3/8-inch socket size — Manufacturer's 3230S-series representative image; pictured size markings may differ. This listing is the 323012S, with a 3/8-inch square drive and a 3/8-inch 12-point socket size, sold individually.

Features

Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Inch-series 12-point opening for 3/8-inch across-flats fasteners.
Four ball grooves for retention; manufactured to ANSI/ASME B107.1.
One deep socket, not a ratchet-wrench set.

KING TONY 3230S-series sectional dimension drawing showing D1, D2, inner length ell and overall length L; exact 323012S dimensions are in the specification table — 3230S-series dimension diagram. D1 is the socket-end outside diameter, D2 is the drive-end outside diameter, ell is the inner length and L is the overall length. Exact 323012S values are listed below.

Specifications

Brand / model	KING TONY / 323012S
Series / configuration	3230S / inch-series 12-point deep socket
Square drive	3/8 inch
Socket size	3/8 inch
Socket-end outside diameter D1	14.0 mm
Drive-end outside diameter D2	17.8 mm
Inner length ell	12.0 mm
Overall length L	63 mm
Weight	49 g
Material / finish	Chrome-vanadium alloy steel / polished and chrome plated
Retention	Four ball grooves
Standard	ANSI/ASME B107.1
Sales unit	One socket

What's in the Box

KING TONY 323012S 3/8-inch 12-point deep socket × 1
