Name: KING TONY 323012M 3/8-inch Drive 12 mm Deep 12-Point Socket
Brand: KING TONY
SKU: KT-323012M
Price: 160 TWD
Availability: InStock

KING TONY 323012M is a single 12 mm metric deep socket with a 3/8-inch square drive and a 12-point opening. Its 63 mm overall length provides the reach of the manufacturer’s 3230M deep-socket design.

Features

Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves at the drive connection.
Manufacturer lists DIN 3124 and ISO 2725-1.

Manufacturer 3230M-series deep 12-point socket representative; this 323012M listing is 12 mm with 3/8-inch drive and pictured markings may differ — Manufacturer’s 3230M-series representative packshot; the markings may show a different size and this is not an exact-size photograph. This listing is the 12 mm model 323012M with 3/8-inch drive, sold individually.

Manufacturer 3230M-series dimension diagram identifying D1, D2, l and L; see the specification table for 323012M values — Series dimension diagram, not a product photograph. D1 and D2 are the socket and drive-end outside diameters; l is the working depth and L is the overall length. Exact 323012M values are listed below.

Specifications

Model	323012M
Listing SKU	KT-323012M
Drive	3/8-inch square
Metric socket size	12 mm
Opening	12-point
Design	Deep socket
Socket-end outside diameter D1	16.8 mm
Drive-end outside diameter D2	17.8 mm
Working depth l	15.0 mm
Overall length L	63 mm
Weight	58 g
Material / finish	Chrome-vanadium alloy steel / polished and chrome plated
Listed standards	DIN 3124; ISO 2725-1
Sales unit	One socket

Package contents

323012M 12 mm deep 12-point socket ×1

Features

Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves at the drive connection.
Manufacturer lists DIN 3124 and ISO 2725-1.

Specifications

Model	323012M
Listing SKU	KT-323012M
Drive	3/8-inch square
Metric socket size	12 mm
Opening	12-point
Design	Deep socket
Socket-end outside diameter D1	16.8 mm
Drive-end outside diameter D2	17.8 mm
Working depth l	15.0 mm
Overall length L	63 mm
Weight	58 g
Material / finish	Chrome-vanadium alloy steel / polished and chrome plated
Listed standards	DIN 3124; ISO 2725-1
Sales unit	One socket

Package contents

323012M 12 mm deep 12-point socket ×1

JACO自營旗艦店

KING TONY 323012M 3/8-inch Drive 12 mm Deep 12-Point Socket

JACO自營旗艦店

Reviews & Q&A

Similar products

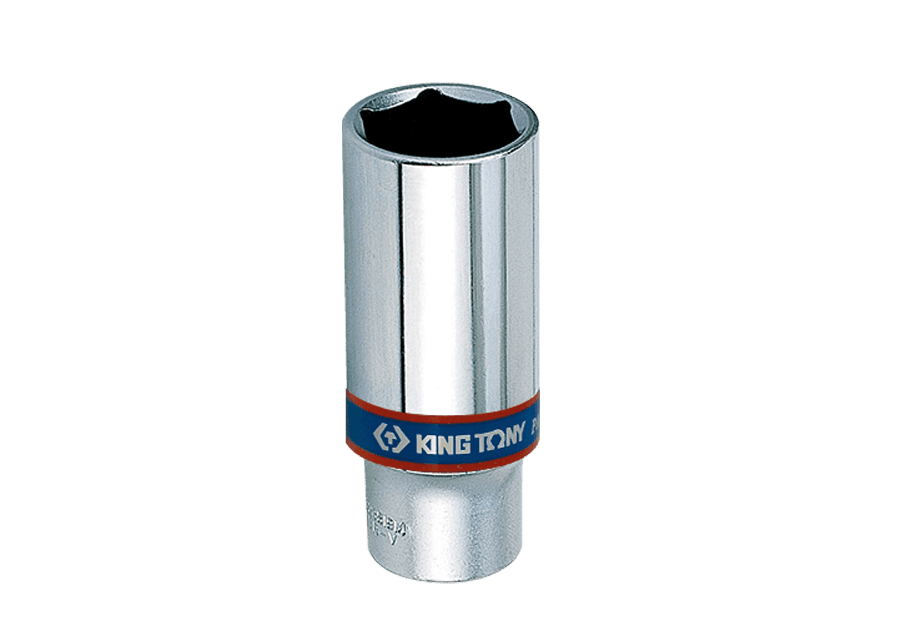

KING TONY 323512M 3/8-inch Drive 12 mm 6-Point Deep Socket
