KING TONY 323009M 3/8-inch Drive 9 mm 12-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 323009M
Order code: Y8E5O4G
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$160.00/ 顆~~Was $230.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 323009M is the 9 mm metric 12-point deep socket in the 3230M series. It has a 3/8-inch square drive and an overall length of 63 mm. Pair its deep body with a compatible hand ratchet or extension for access to recessed nuts and bolt heads.

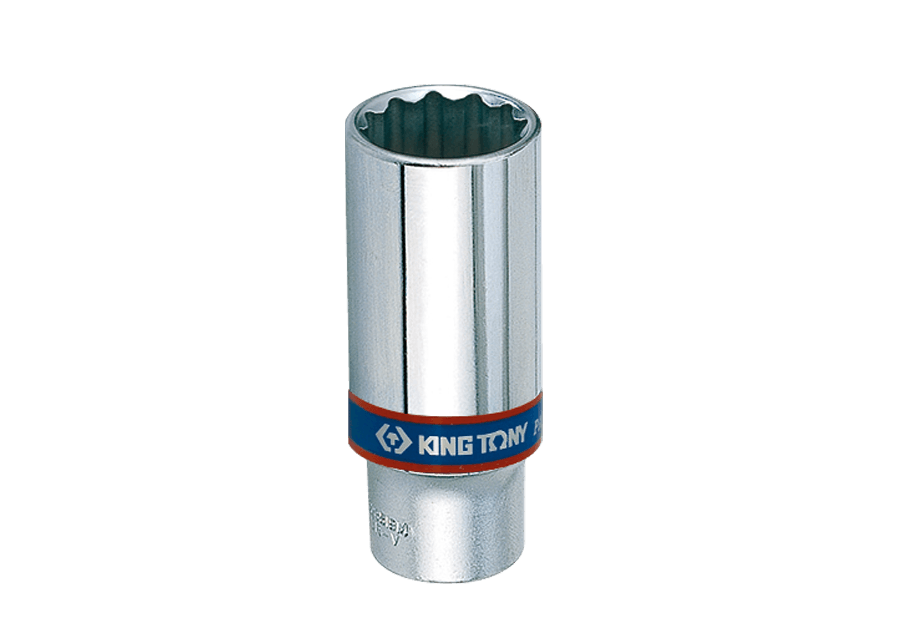

KING TONY 3230M-series 12-point deep socket representative image, not an exact 9 mm 323009M photograph — Manufacturer-supplied 3230M-series representative image, not an exact-size photograph of 323009M; pictured markings and dimensions may differ. This listing is the 9 mm, 3/8-inch-drive 12-point deep socket, sold individually.

Features

9 mm metric 12-point opening with a 3/8-inch square drive for compatible hand tools.
63 mm deep body; outside diameters and bore depth are specified below.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Manufacturer specifies four ball grooves and DIN 3124 / ISO 2725-1 standards.

KING TONY 3230M-series deep socket section diagram identifying D1, D2, bore depth and overall length — Manufacturer 3230M-series section diagram identifying D1, D2, ℓ and L; the specification table gives the values for 323009M.

Specifications

Brand	KING TONY
Manufacturer model	323009M
Series	3230M
Square drive	3/8 inch
Metric opening	9 mm
Profile	12-point
Type	Deep socket
Working-end outside diameter D1	13.2 mm
Drive-end outside diameter D2	17.8 mm
Working-end bore depth ℓ	12.0 mm
Overall length L	63 mm
Weight	59 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention feature	Four ball grooves
Standards	DIN 3124, ISO 2725-1
Selling unit	One socket

Package contents

KING TONY 323009M 9 mm 12-point deep socket ×1

Sold as one socket, not a multi-size set.
