KING TONY 323507M 3/8-inch Drive 7 mm 6-Point Deep Socket
Hand Tools
$160.00/ 顆
$230.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$160.00/ 顆Was $230.00-30%

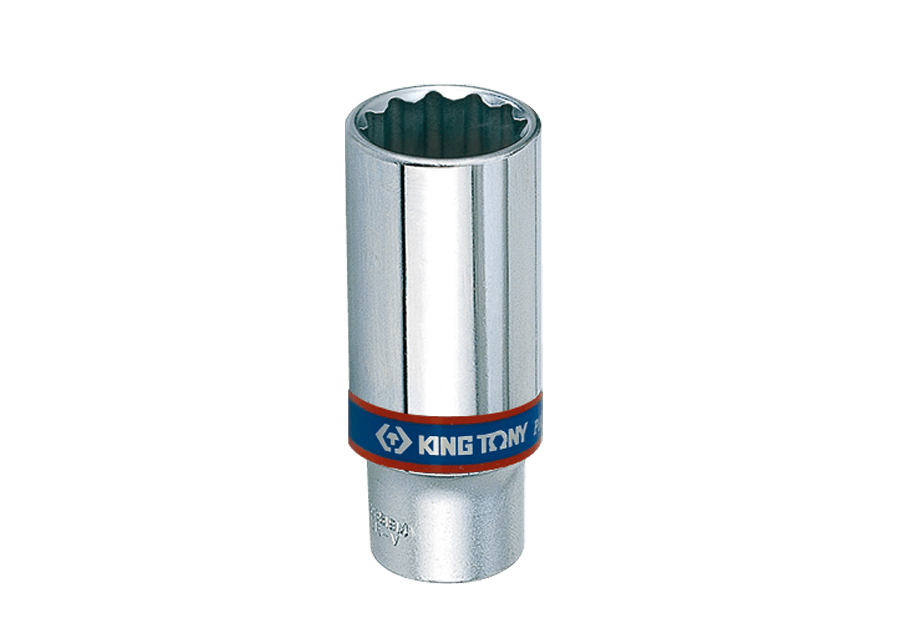

The KING TONY 323007M is a 7 mm metric 12-point deep socket for use with 3/8-inch square-drive hand ratchets and extensions. Its 63 mm body suits fastening jobs requiring a deep socket. Check the fastener size and working clearance before selecting the tool.


| Brand | KING TONY |
|---|---|
| Manufacturer model | 323007M |
| SKU | KT-323007M |
| Tool type | Metric 12-point deep socket |
| Square drive | 3/8 inch |
| Socket size | 7 mm |
| Opening profile | 12-point |
| Overall length L | 63 mm |
| D1 (working-end outside diameter) | 10.8 mm |
| D2 (drive-end outside diameter) | 17.8 mm |
| ℓ (internal dimension shown) | 10.0 mm |
| Weight | 55 g |
| Material | Chrome-vanadium alloy steel |
| Finish | Polished, chrome-plated |
| Retention design | Four ball-retaining grooves |
| Standards listed by manufacturer | DIN 3124, ISO 2725-1 |
| Selling unit | 顆 (one socket) |
