Name: KING TONY 237510M E10 Star Socket, 1/4-inch Drive
Brand: KING TONY
SKU: KT-237510M
Price: 100 TWD
Availability: InStock

The KING TONY 237510M is an E10 socket for external-star screw heads. It connects to a matching 1/4-inch square-drive hand tool and measures 24 mm overall. Select the socket by the fastener head profile and size. This listing is for one socket, not a multi-size set.

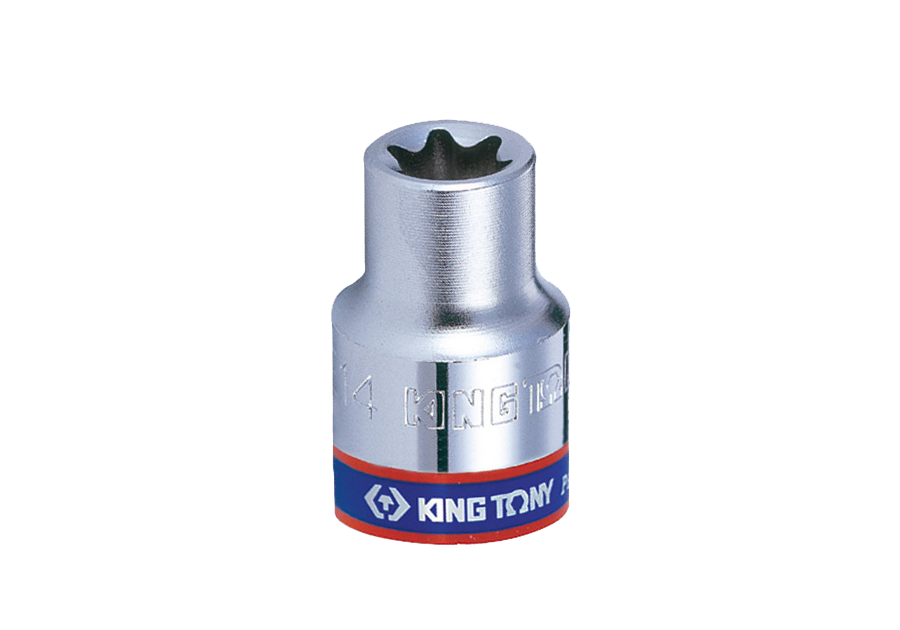

KING TONY 2375M-series white-background star socket representative photo; markings may differ; actual listing is 237510M E10, 1/4-inch drive, one socket — Manufacturer's 2375M-series representative photograph; visible size markings may differ. This listing is the 237510M E10 socket with a 1/4-inch square drive, sold individually.

Features and application

Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four-ball retaining grooves for use with a matching square-drive tool.
Made to DIN 3120. E10 identifies the star profile size, not a metric hexagon size.

Specifications

Brand	KING TONY
Manufacturer model	237510M
SKU	KT-237510M
Working profile	E10 external star
Square drive	1/4 inch (6.35 mm)
D1 outside diameter	11.8 mm
D2 outside diameter	11.8 mm
l dimension	9.0 mm
Overall length L	24 mm
Weight	13 g
Material and finish	Chrome vanadium alloy steel; polished and chrome plated
Retention	Four-ball retaining grooves
Standard	DIN 3120
Selling unit	One socket (顆)

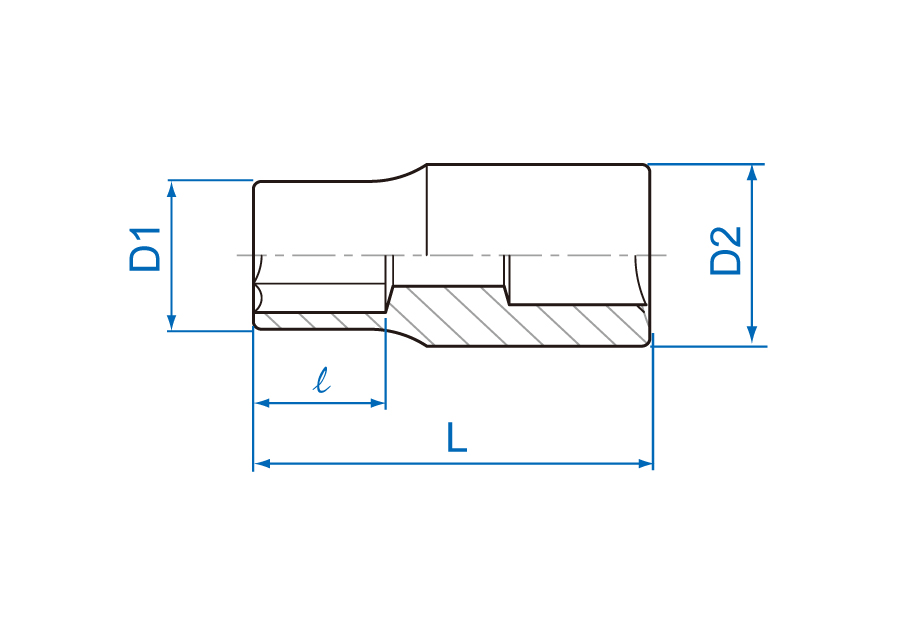

KING TONY 2375M-series socket section diagram with D1, D2, l and L labels; see exact 237510M specification table for values — Manufacturer's 2375M-series sectional dimension diagram, not a product photograph. D1, D2, l and L identify measurement positions; see the table for the exact 237510M values.

What's in the Box

KING TONY 237510M E10 1/4-inch-drive star socket × 1

Features and application

Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four-ball retaining grooves for use with a matching square-drive tool.
Made to DIN 3120. E10 identifies the star profile size, not a metric hexagon size.

Specifications

Brand	KING TONY
Manufacturer model	237510M
SKU	KT-237510M
Working profile	E10 external star
Square drive	1/4 inch (6.35 mm)
D1 outside diameter	11.8 mm
D2 outside diameter	11.8 mm
l dimension	9.0 mm
Overall length L	24 mm
Weight	13 g
Material and finish	Chrome vanadium alloy steel; polished and chrome plated
Retention	Four-ball retaining grooves
Standard	DIN 3120
Selling unit	One socket (顆)

What's in the Box

KING TONY 237510M E10 1/4-inch-drive star socket × 1
