Name: KING TONY 237506M 1/4" Drive E6 External Star Socket
Brand: KING TONY
SKU: KT-237506M
Price: 90 TWD
Availability: InStock

The KING TONY 237506M is a 1/4-inch-drive E6 external star socket for external six-lobed star fasteners. Its short body is 24 mm long and made from polished, chrome-plated chrome vanadium alloy steel. This listing is for one E6 socket, sold individually.

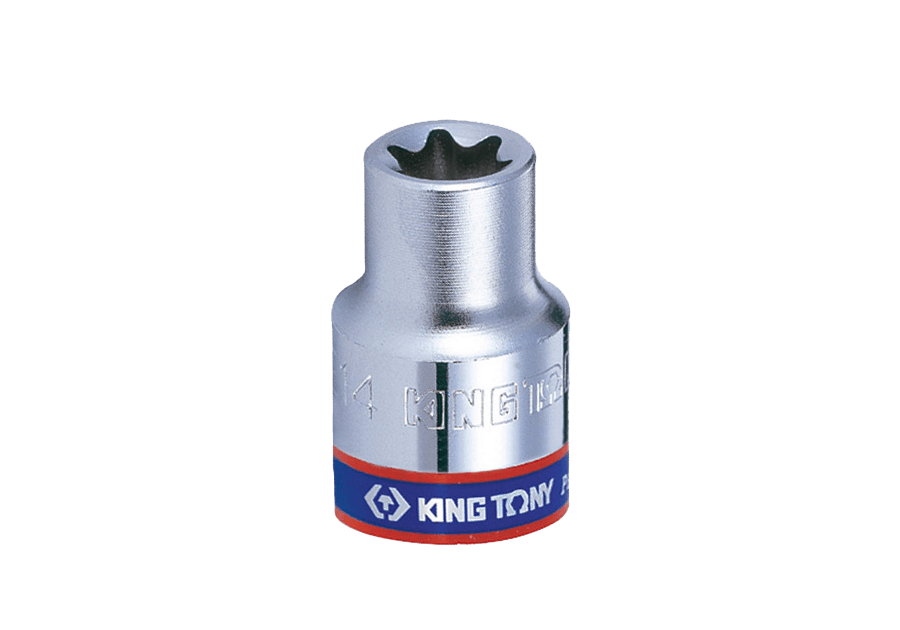

Manufacturer 2375M-series representative socket photo with visible 4 marking; this listing is model 237506M, E6, 24 mm long, sold individually — This is the manufacturer's KING TONY 2375M-series representative photograph. The visible size marking 4 differs from the E6 item listed here; it is not an exact-size photograph of 237506M. The supplied item is one E6 socket, 24 mm long.

Features

The female E6 external-star opening is for external star fasteners, not a T6 screwdriver bit.
The 1/4-inch square drive has a four-ball-groove locating design.
Chrome vanadium alloy steel construction with a polished, chrome-plated finish.
Drive interface to DIN 3120. Match both the fastener size and the square-drive size before use.

Specifications

Brand	KING TONY
Manufacturer model	237506M
Square drive	1/4 inch (6.35 mm)
External star size	E6
Working-end diameter D1	8.0 mm
Drive-end diameter D2	11.8 mm
Working depth l	6.0 mm
Overall length L	24 mm
Weight	10 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Drive interface standard	DIN 3120
Selling unit	One socket (source UOM: 顆)

Package Contents

237506M 1/4-inch-drive E6 external star socket ×1 per selling unit

Features

The female E6 external-star opening is for external star fasteners, not a T6 screwdriver bit.
The 1/4-inch square drive has a four-ball-groove locating design.
Chrome vanadium alloy steel construction with a polished, chrome-plated finish.
Drive interface to DIN 3120. Match both the fastener size and the square-drive size before use.

Specifications

Brand	KING TONY
Manufacturer model	237506M
Square drive	1/4 inch (6.35 mm)
External star size	E6
Working-end diameter D1	8.0 mm
Drive-end diameter D2	11.8 mm
Working depth l	6.0 mm
Overall length L	24 mm
Weight	10 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Drive interface standard	DIN 3120
Selling unit	One socket (source UOM: 顆)

Package Contents

237506M 1/4-inch-drive E6 external star socket ×1 per selling unit
