KING TONY 237508M 1/4 in Drive E8 External Star Socket
Hand Tools
$90.00/ 顆
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$90.00/ 顆
The KING TONY 237504M is an E4 star socket for external six-lobe star fasteners. It has a 1/4 in square drive, an overall length of 24 mm and a weight of 9 g per socket.

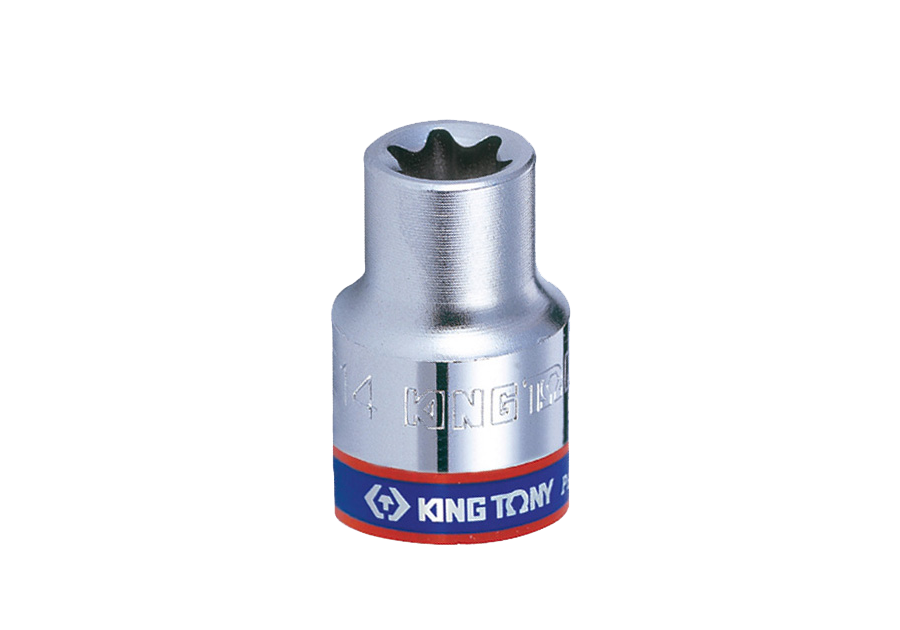

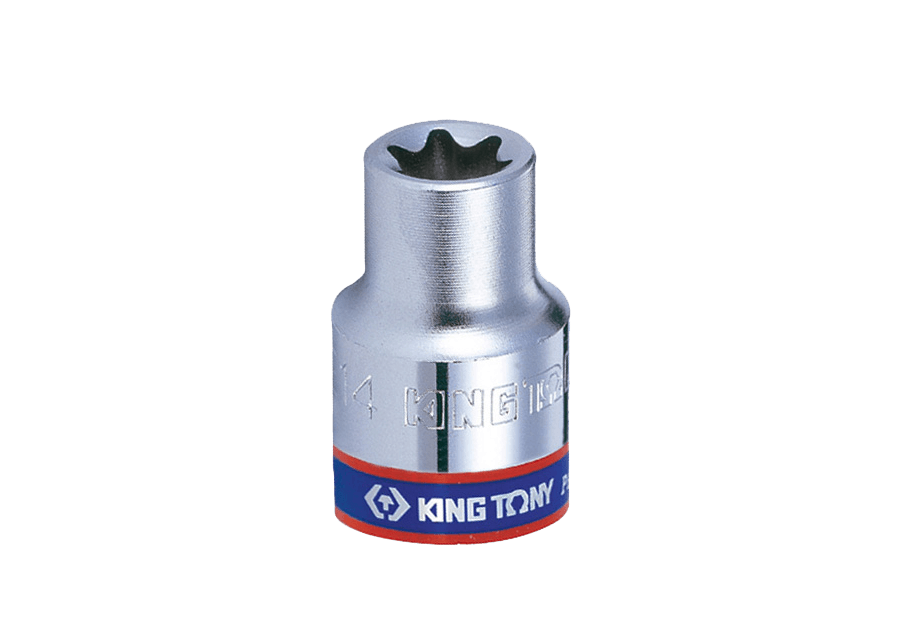

Official 2375M family image; specifications shown here are for model 237504M.
| Brand | KING TONY |
|---|---|
| Model | 237504M |
| Fastener profile and size | External six-lobe star, E4 |
| Square drive | 1/4 in |
| Star-end outside diameter D1 | 6.0 mm |
| Drive-end outside diameter D2 | 11.8 mm |
| Star recess depth ℓ | 3.6 mm |
| Overall length L | 24 mm |
| Weight | 9 g |
| Material | Chrome vanadium alloy steel |
| Finish | Polished and chrome plated |
| Specification | DIN 3120 |
