KING TONY 233518S 1/4-inch Drive 9/16-inch 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233518S
Order code: Y8EVRNZ
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233518S is an imperial 6-point standard socket with a 1/4-inch square drive and a 9/16-inch opening. Its overall length is 24 mm. Use it with a matching square-drive hand tool. This listing is for one socket, not a socket set.

Features and use

6-point opening for 9/16-inch hex nuts and bolt heads.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves to engage the drive tool’s detent ball.
Manufacturer specification references ANSI/ASME B107.1.

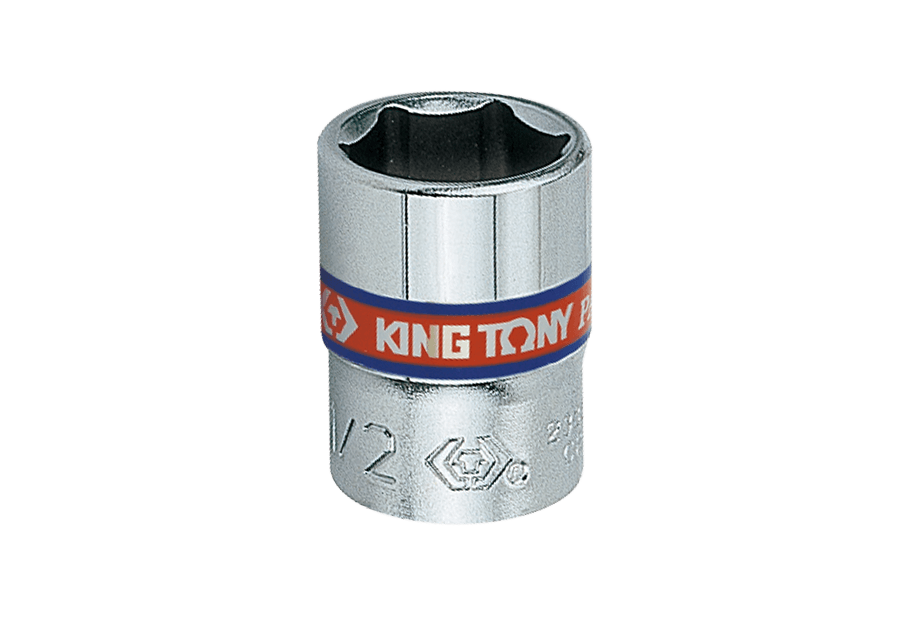

KING TONY 2335S-series representative socket marked 1/2 inch; listed 233518S has a 9/16-inch opening and 1/4-inch drive — Manufacturer-supplied 2335S-series representative image: the pictured socket is marked 1/2 inch and is not an exact-size photograph of this item. The listed 233518S has a 9/16-inch opening and a 1/4-inch drive and is sold individually.

Dimension diagram

KING TONY 2335S socket schematic showing D1, D2, working-end depth ℓ and overall length L — Manufacturer’s 2335S-series dimension diagram: D1 is the opening-end outside diameter, D2 the drive-end outside diameter, ℓ the working-end depth, and L the overall length. Exact 233518S values appear below. This is a schematic, not a product photograph.

Specifications

Model	233518S
Square drive	1/4 inch
Opening profile	6-point
Imperial opening size	9/16 inch
Overall length L	24 mm
Working-end depth ℓ	9 mm
Opening-end outside diameter D1	19.6 mm
Drive-end outside diameter D2	18.5 mm
Weight	31 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Manufacturer reference standard	ANSI/ASME B107.1
Sales unit	One socket

Package contents

233518S 9/16-inch 6-point standard socket × 1
