KING TONY 233515S 1/4-Inch Drive 15/32-Inch 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233515S
Order code: Y8EISSR
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233515S is a standard-length 6-point imperial socket with a 15/32-inch opening and a 1/4-inch square drive. Its 24 mm overall length provides a compact socket format for corresponding hex nuts and bolts when used with a compatible hand ratchet or extension. This listing is for one socket, not a socket set.

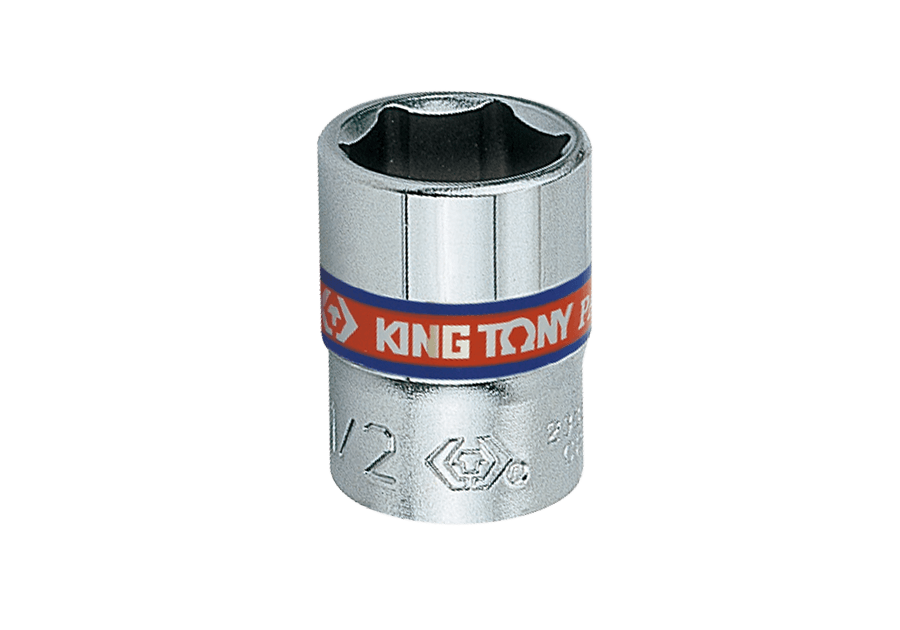

Manufacturer 2335S-series representative 6-point standard socket, marked 1/2 inch; this 233515S listing is 15/32 inch with a 1/4-inch square drive — Manufacturer-supplied 2335S-series representative image: the pictured physical socket is marked 1/2 inch, not 15/32 inch. This listing is model 233515S, a 15/32-inch socket with a 1/4-inch square drive, sold individually.

Features

15/32-inch imperial 6-point opening in a standard-length socket.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for use with compatible square-drive hand tools.
The manufacturer specifies ANSI/ASME B107.1.

Manufacturer 2335S-series section drawing identifying D1, D2, socket depth ell and overall length L; see the table for 233515S dimensions — Manufacturer 2335S-series sectional drawing identifying the dimension positions; it is not an exact-size product photograph. The dimensions for model 233515S are listed below.

Specifications

Model	233515S
Square drive	1/4 inch
Socket size	15/32 inch (imperial)
Opening	6-point
Length type	Standard
D1 outside diameter	16.8 mm
D2 outside diameter	15.5 mm
Socket depth ell	9 mm
Overall length L	24 mm
Weight	22 g
Material and finish	Chrome-vanadium alloy steel; polished and chrome plated
Manufacturer-specified standard	ANSI/ASME B107.1
Sale unit	One socket (顆)

What's in the Box

KING TONY 233515S 15/32-inch 6-point standard socket ×1

This is a single-socket listing; a ratchet, extension and other tools are not included.
