KING TONY 233514S 1/4-Inch Drive 7/16-Inch 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233514S
Order code: Y8EMQTS
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233514S is a 7/16-inch imperial six-point standard hand socket with a 1/4-inch square drive. Its 24 mm overall length suits use with a matching 1/4-inch-drive hand ratchet or extension on correctly sized hex nuts and bolts. This listing is for one individual socket.

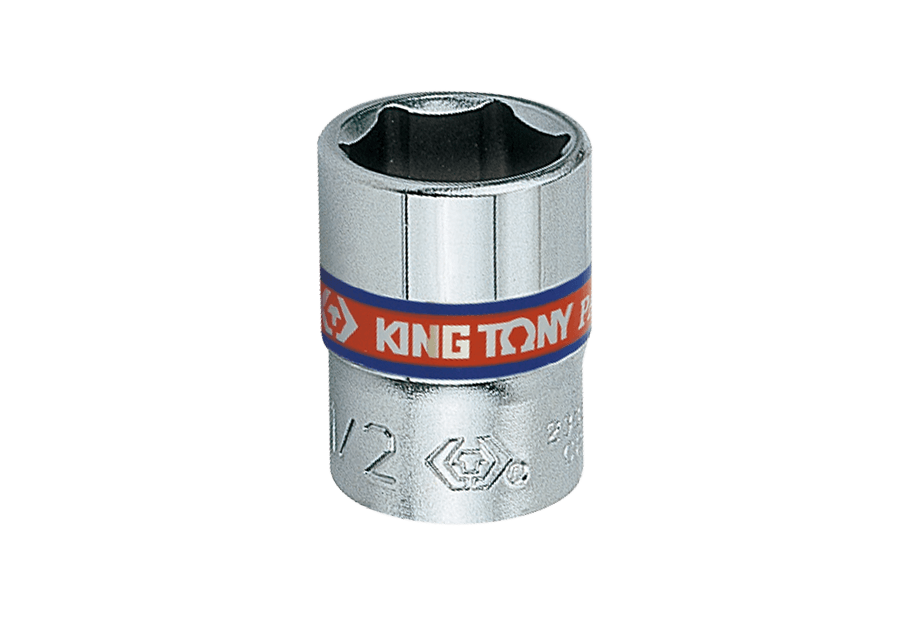

Manufacturer's KING TONY 2335S six-point standard socket representative photo marked 1/2 inch; this 233514S listing is 7/16 inch, sold individually — This is the manufacturer’s 2335S-series representative photograph, marked 1/2 inch. The actual 233514S socket offered here is 7/16 inch and is sold individually, not as a set.

Features

7/16-inch six-point opening for matching imperial hex fasteners.
1/4-inch square drive with the manufacturer’s four detent-ball recesses.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Standard-length body: 24 mm overall length, 9 mm opening depth and 19 g weight.

Specifications

Brand	KING TONY
Model	233514S
Square drive	1/4 inch (6.35 mm)
Socket size and profile	7/16 inch, imperial six-point
Type	Standard-length hand socket
Socket-end outside diameter D1	15.8 mm
Drive-end outside diameter D2	14.2 mm
Opening depth ℓ	9 mm
Overall length L	24 mm
Weight	19 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Manufacturer-stated standard	ANSI/ASME B107.1
Sale unit	One individual socket

KING TONY 2335S socket cross-section dimension diagram; 233514S has D1 15.8 mm, D2 14.2 mm, opening depth l 9 mm and total length L 24 mm — This manufacturer’s 2335S-series cross-section identifies dimension symbols; it is not a photograph or a scale drawing. For 233514S, D1 is 15.8 mm, D2 is 14.2 mm, opening depth ℓ is 9 mm and total length L is 24 mm.

Single-item contents

KING TONY 233514S 7/16-inch six-point standard socket ×1
