KING TONY 233512S 1/4-inch Drive 3/8-inch SAE 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233512S
Order code: Y8E9UQI
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$70.00/ 顆~~Was $100.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233512S is a standard-length, six-point SAE hand socket with a 1/4-inch square drive and a 3/8-inch opening. Its overall length is 24 mm. Check the drive size separately from the fastener size when choosing compatible hand tools. This listing is for one socket, not a socket set.

Features

Six-point working end for matching 3/8-inch hex nuts and bolt heads.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball retaining grooves; the manufacturer lists ANSI/ASME B107.1 as the reference standard.
Standard hand socket for compatible 1/4-inch square-drive hand tools.

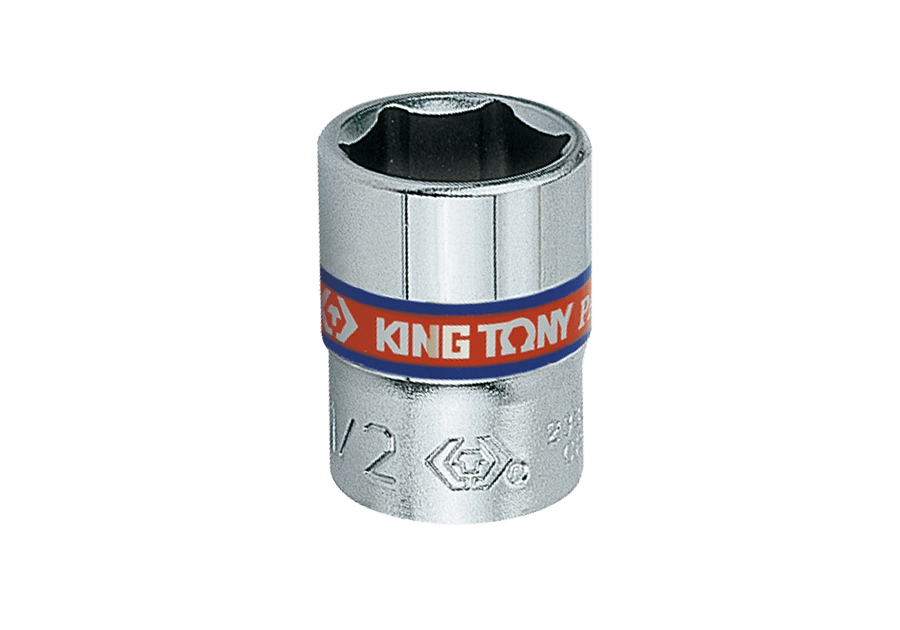

KING TONY 2335S standard six-point socket series image, marked 1/2 inch; this 233512S listing is 3/8 inch with 1/4 inch drive, sold individually — Manufacturer-supplied KING TONY 2335S series representative image. The pictured socket is marked 1/2 inch and is not an exact photograph of this 3/8-inch size. This 233512S listing has a 3/8-inch opening and 1/4-inch square drive, and is sold individually.

Specifications

Brand	KING TONY
Model	233512S
Square drive	1/4 inch
Socket size	3/8 inch (SAE)
Profile	6-point
Overall length L	24 mm
Socket-end outside diameter D1	14.2 mm
Drive-end outside diameter D2	13.0 mm
Socket opening depth l	8 mm
Weight	14 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome-plated
Retention	4 ball retaining grooves
Reference standard	ANSI/ASME B107.1
Selling unit	One socket

KING TONY 2335S socket dimension-position diagram; 233512S has D1 14.2 mm, D2 13.0 mm, l 8 mm and L 24 mm — Manufacturer 2335S series sectional dimension-position diagram, not a product photograph. Use the exact 233512S dimensions in the table above.

Package contents

KING TONY 233512S 3/8-inch SAE six-point standard socket × 1
