KING TONY 2335M 系列六角標準套筒示意，照片標記為 13 mm；本款 233511M 為 11 mm，1/4 吋驅動，單顆出售

KING TONY 233511M 1/4-inch Drive 11 mm 6-Point Metric Standard Socket

Brand: KING TONY
Manufacturer model number: 233511M
Order code: Y8E4WN4
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233511M is an 11 mm, six-point metric standard hand socket with a 1/4-inch drive. Its 24 mm overall length suits matching hand socket tools for appropriately sized hexagonal nuts and bolts. This listing is for one socket, not a socket set.

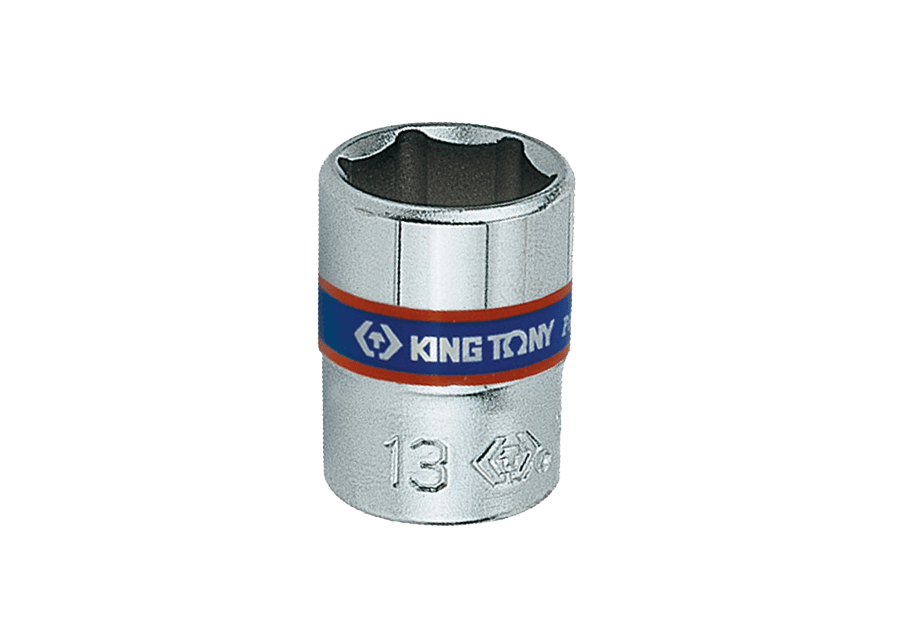

Manufacturer's KING TONY 2335M-series socket image marked 13 mm; this 233511M listing is 11 mm with 1/4-inch drive, sold individually — Manufacturer's 2335M-series representative photograph: the pictured socket is marked 13 mm, not the size sold here. This 233511M listing is the 11 mm socket with 1/4-inch drive, sold individually.

Features and use11 mm six-point working end

Select the 11 mm socket size to match the fastener and check that the hand tool has a compatible 1/4-inch drive.

Polished chrome-plated alloy steel

The manufacturer specifies chrome vanadium alloy steel, a polished chrome-plated finish and four ball-retaining grooves.

Model-specific dimensions

The series is specified to DIN 3124 and ISO 2725-1. The dimensions and weight below are taken from the exact 233511M row, rather than another size in the series.

Specifications

Brand	KING TONY
Model	233511M
Type	Metric standard hand socket
Drive size	1/4 inch
Socket size	11 mm
Working profile	6-point hexagon
Overall length L	24 mm
Socket-end outside diameter D1	15.8 mm
Drive-end outside diameter D2	14.2 mm
Working-end depth l	9 mm
Weight	19 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention	4 ball-retaining grooves
Manufacturer-listed standards	DIN 3124, ISO 2725-1
Priced unit	One socket (顆)

Dimension guide

KING TONY 2335M-series dimension diagram for D1, D2, l and L; this 233511M socket is 11 mm with 24 mm overall length — Manufacturer's 2335M-series technical diagram showing where D1, D2, l and L are measured; this is not a product photograph. Use the specification table for the actual 233511M values.

What's in the Box

233511M 11 mm metric 6-point standard socket ×1
