KING TONY 233508S 1/4-inch Drive 1/4-inch Six-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233508S
Order code: Y8E6S9F
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$60.00/ 顆~~Was $90.00~~-33%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 233508S is a standard-length six-point hand socket with a 1/4-inch square drive and a 1/4-inch imperial opening. Its 24 mm overall length provides a compact option for matching 1/4-inch fasteners with a compatible hand ratchet or drive handle.

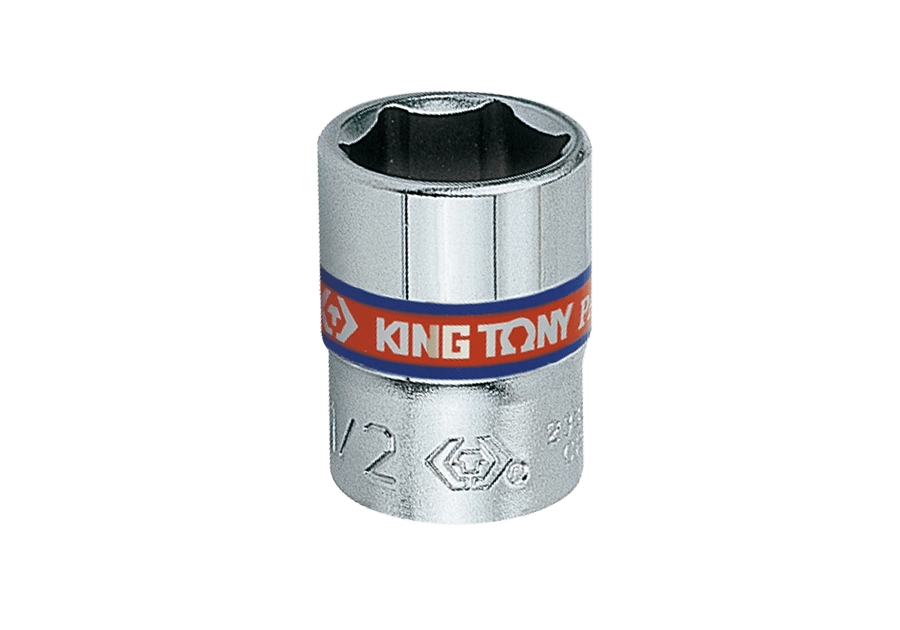

KING TONY 2335S-series representative standard six-point socket marked 1/2; this 233508S is a 1/4-inch socket with a 1/4-inch square drive, sold individually — Manufacturer's 2335S-series representative photograph, marked 1/2 inch; it is not an exact-size photograph of this model. This listing is the 233508S socket: 1/4-inch opening, 1/4-inch square drive, sold as one socket.

Features

Six-point imperial socket opening; socket size and square-drive size are specified separately.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves in the drive connection, as specified for the 2335S series.
Manufacturer specification references ANSI/ASME B107.1.

KING TONY 2335S-series socket section diagram showing D1, D2, l and L; see the 233508S specification table for actual dimensions — Manufacturer 2335S-series sectional diagram showing D1, D2, l and L. The diagram is a dimensional reference, not a product photograph; use the 233508S values in the table below.

Specifications

Brand	KING TONY
Manufacturer model	233508S
Socket type	Standard-length hand socket, six-point, imperial
Square drive	1/4 inch
Socket opening	1/4 inch
Overall length L	24 mm
Opening-end outside diameter D1	9.5 mm
Drive-end outside diameter D2	11.8 mm
Socket depth l	7 mm
Weight	11 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Standard	ANSI/ASME B107.1
Selling unit	One socket (顆)

Package contents

KING TONY 233508S 1/4-inch six-point standard socket × 1
