KING TONY 233507S 1/4" Drive 7/32" 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233507S
Order code: Y8E524O
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$60.00/ 顆~~Was $90.00~~-33%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233507S is a 7/32-inch imperial 6-point standard hand socket with a 1/4-inch square drive. Its overall length is 24 mm. Pair it with a compatible manual ratchet or drive tool for matching imperial hex nuts and bolts. This listing is for one socket, not a socket set.

Features and application

7/32-inch 6-point opening; check the fastener size before selecting the socket.
1/4-inch square drive with four ball-retention grooves.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
The manufacturer specifies ANSI/ASME B107.1.

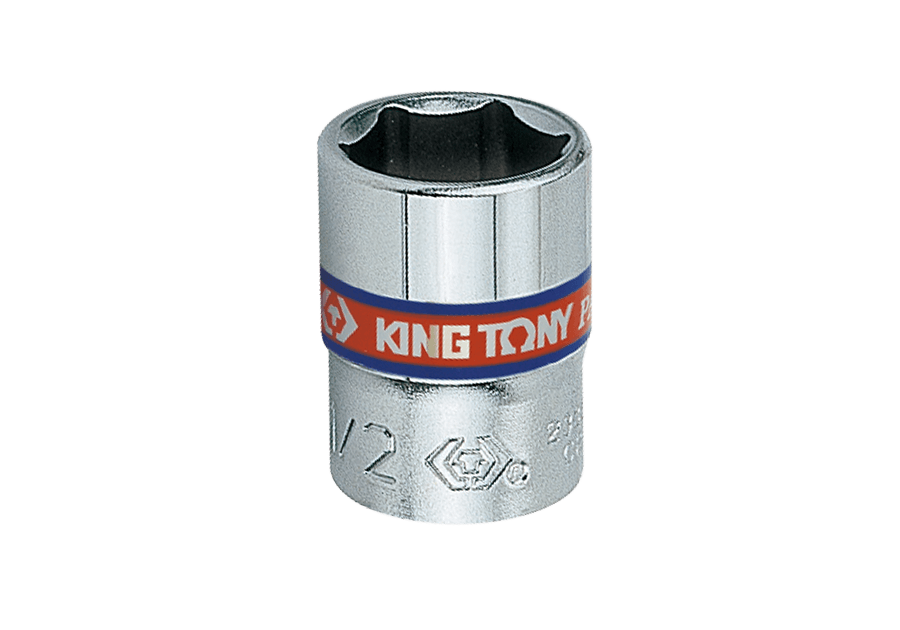

Manufacturer-supplied 2335S-series representative image. The pictured socket is marked 1/2 inch and is not an exact photograph of this size. This listing is the 233507S: 7/32-inch opening, 1/4-inch drive, sold individually.

The manufacturer's 2335S-series drawing illustrates the D1, D2, ℓ and L measurement positions. Actual dimensions for 233507S are listed in the specification table.

Specifications

Model	233507S
Series	2335S
Square drive	1/4 inch
Socket opening	7/32 inch
Profile	Imperial 6-point
Type	Standard hand socket
Working-end outside diameter D1	8.7 mm
Drive-end outside diameter D2	11.8 mm
Opening depth ℓ	6 mm
Overall length L	24 mm
Weight	11 g
Material	Chrome-vanadium alloy steel
Finish	Polished and chrome-plated
Standard	ANSI/ASME B107.1
Selling unit	One socket

What's in the box

233507S 7/32-inch imperial 6-point standard socket × 1
