KING TONY 233505M 1/4-inch Drive 5 mm Six-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233505M
Order code: Y8EC159
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$60.00/ 顆~~Was $90.00~~-33%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 233505M is a 5 mm metric six-point standard socket with a 1/4-inch square drive and a 24 mm overall length. Its six-point opening fits 5 mm hex fasteners and works with compatible 1/4-inch hand-drive tools. This listing is for one socket, not a multi-size set.

Features

Chrome vanadium alloy steel construction with a polished, chrome-plated finish.
Metric six-point opening in a standard-length design.
Four-ball-groove retention feature at the drive end.
Specified to DIN 3124 and ISO 2725-1.

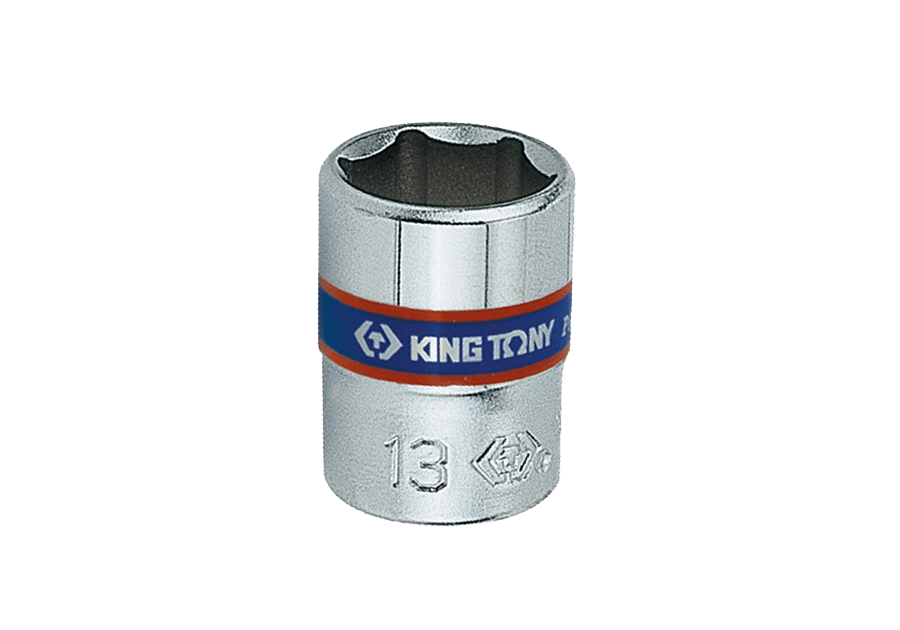

Manufacturer 2335M-series six-point standard socket, pictured with a 13 marking; this 233505M listing is the 5 mm socket, sold individually — Manufacturer-supplied 2335M-series representative photograph; the pictured socket is marked 13. This listing is model 233505M, size 5 mm, sold as one socket.

Specifications

Brand	KING TONY
Model	233505M
Square drive	1/4 in
Socket size	5 mm
Type	Metric six-point standard hand socket
Working-end outside diameter D1	8.0 mm
Drive-end outside diameter D2	11.8 mm
Socket opening depth ℓ	6 mm
Overall length L	24 mm
Weight	10 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Standards	DIN 3124, ISO 2725-1
Selling unit	One socket

Manufacturer 2335M-series sectional dimension diagram identifying D1, D2, ℓ and L; see the specification table for 233505M dimensions — Manufacturer series dimension-position diagram, not a product photograph. For 233505M: D1 8.0 mm, D2 11.8 mm, ℓ 6 mm and L 24 mm.

Package contents

One KING TONY 233505M 5 mm six-point standard socket
