KING TONY 233055M 1/4 in Drive 5.5 mm 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233055M
Order code: Y8EF30L
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$60.00/ 顆~~Was $90.00~~-33%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 233055M is a metric 5.5 mm, 12-point standard hand socket with a 1/4 in square drive for use with matching manual socket tools. This model is 24 mm long and is sold as one individual socket, not a multi-size set.

Product features

Metric 5.5 mm 12-point working end, explicitly identified as model 233055M in the manufacturer specification table.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for engagement with a 1/4 in square drive.
The manufacturer lists DIN 3124 and ISO 2725-1.

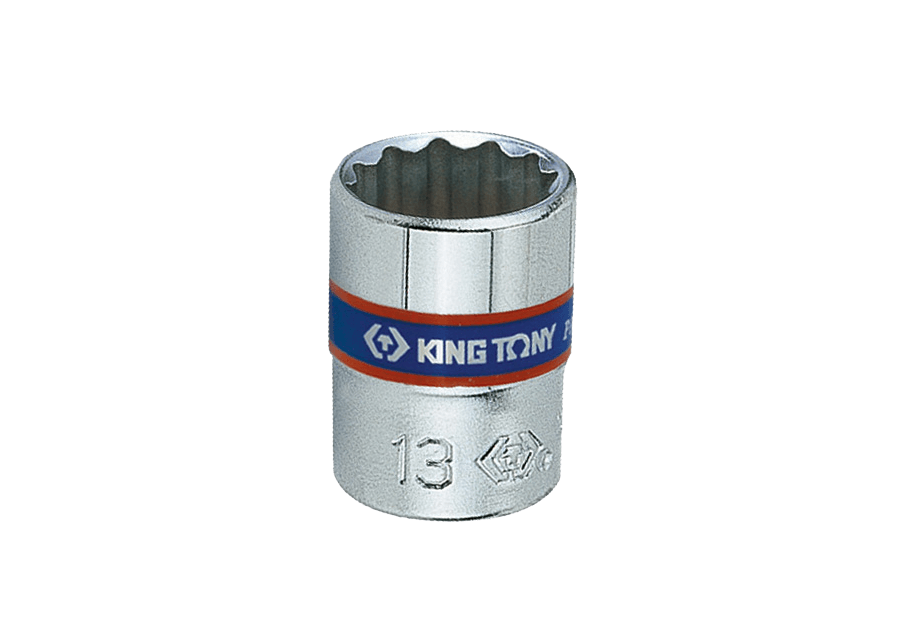

KING TONY 2330M-series representative 12-point standard socket stamped 13; listed 233055M is 5.5 mm and sold individually — Manufacturer's KING TONY 2330M-series representative image; the photographed socket is visibly stamped 13. This listing is model 233055M, size 5.5 mm, sold individually. This is not an exact 5.5 mm product photograph.

KING TONY 2330M standard socket cross-section drawing showing D1, D2, socket depth and overall length — Manufacturer 2330M-series dimensional cross-section, not a product photograph. See the specification table for this model’s D1, D2, ℓ and L values.

Specifications

Model	233055M
Socket series	2330M
Square drive	1/4 in
Socket size	5.5 mm
Working profile	Metric 12-point standard socket
Overall length L	24 mm
Socket depth ℓ	6 mm
Working-end outside diameter D1	8.7 mm
Drive-end outside diameter D2	11.8 mm
Weight	11 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention	Four ball-retaining grooves
Manufacturer-listed standards	DIN 3124; ISO 2725-1
Selling unit	One socket

What's in the Box

233055M 5.5 mm 12-point standard socket × 1
