KING TONY 233045M 1/4 in Drive 4.5 mm 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233045M
Order code: Y8E06UV
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$60.00/ 顆~~Was $90.00~~-33%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233045M is a 4.5 mm metric 12-point standard-length hand socket with a 1/4 in (6.35 mm) square drive for a matching manual ratchet or extension. Its overall length is 24 mm. This listing is for one socket, not a multi-size socket set.

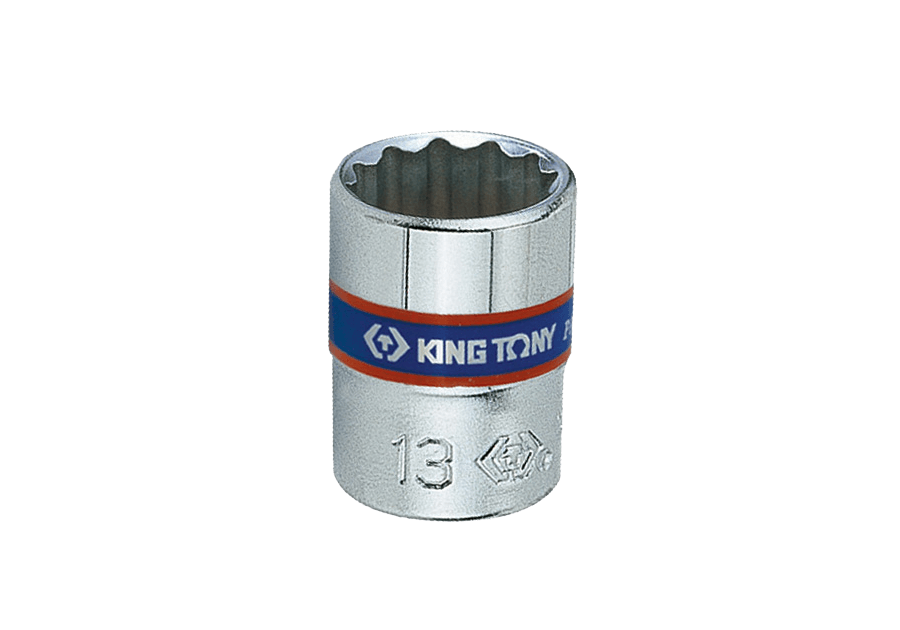

KING TONY 2330M-series twelve-point standard socket representative photo marked 13 mm; this 233045M listing is 4.5 mm, sold individually. — Manufacturer-supplied 2330M-series representative photograph. The pictured socket is marked 13 mm; it is not an exact photograph of this 4.5 mm socket. This listing is model 233045M, size 4.5 mm, sold individually.

Features and use

4.5 mm metric 12-point working end.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves at the square-drive end.
The manufacturer lists DIN 3124 and ISO 2725-1 as the applicable standards.

Specifications

Model	233045M
SKU	KT-233045M
Square drive	1/4 in (6.35 mm)
Size and profile	4.5 mm / metric 12-point
Type	Standard-length hand socket
Working-end outside diameter D1	7.4 mm
Drive-end outside diameter D2	11.8 mm
Working depth l	5 mm
Overall length L	24 mm
Weight	9 g
Material and finish	Chrome vanadium alloy steel; polished and chrome plated
Applicable standards	DIN 3124; ISO 2725-1
Selling unit	One socket

KING TONY 2330M-series sectional dimension diagram labeled D1, D2, l and L; actual 233045M dimensions are listed in the specification table. — 2330M-series sectional dimension diagram: D1 is the working-end outside diameter, D2 the drive-end outside diameter, l the working depth, and L the overall length. The table above gives the actual 233045M values.

What's included

233045M 4.5 mm metric 12-point standard socket × 1
