KING TONY 233014S 1/4 in. Drive 7/16 in. 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233014S
Order code: Y8E8WZV
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233014S is a 7/16-inch, 12-point standard hand socket with a 1/4-inch square drive and a 24 mm overall length. Use it with a matching 1/4-inch-drive hand tool for appropriately sized nuts and bolts. This listing is sold as one individual socket.

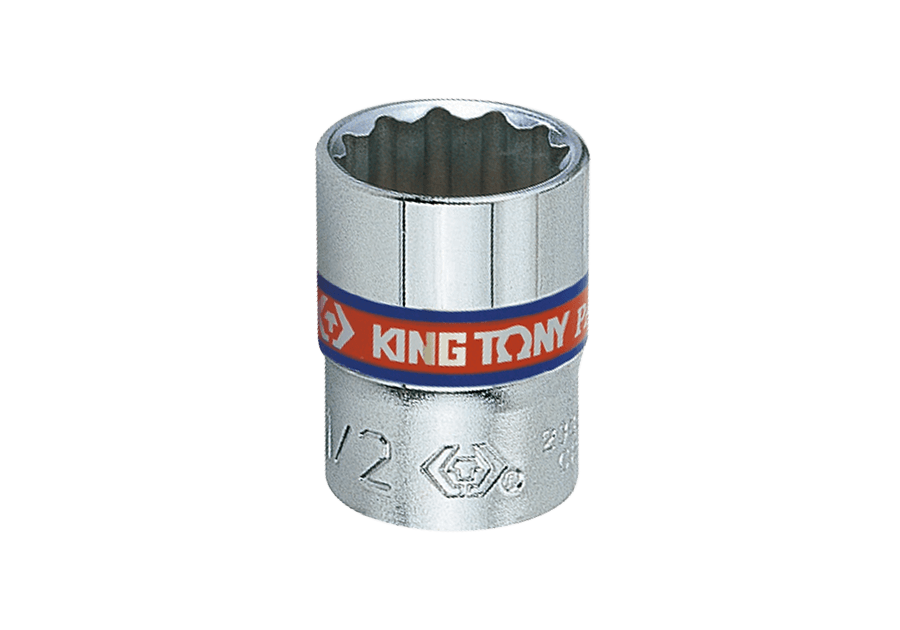

Manufacturer 2330S-series 12-point standard socket image marked 1/2 inch; the listed 233014S is 7/16 inch with a 1/4-inch square drive — Manufacturer-supplied 2330S-series representative image. The photographed socket is marked 1/2 inch, not this item's 7/16-inch size. This listing is model 233014S: a 7/16-inch, 12-point standard socket with a 1/4-inch square drive, sold individually.

Features

Imperial 12-point socket opening with a 1/4-inch square drive for hand tools.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for use with compatible square-drive tools.
The manufacturer lists ANSI/ASME B107.1 as the applicable standard.

Specifications

Model	233014S
Square drive	1/4 inch
Socket size	7/16 inch
Opening profile	12-point
Style	Standard hand socket
Socket-end outside diameter D1	15.8 mm
Drive-end outside diameter D2	14.2 mm
Internal dimension ℓ (see manufacturer drawing)	9 mm
Overall length L	24 mm
Weight	18 g
Material and finish	Chrome vanadium alloy steel; polished and chrome plated
Manufacturer-listed standard	ANSI/ASME B107.1
Selling unit	顆 (one individual socket)

Manufacturer 2330S-series dimensional diagram showing D1, D2, ℓ and L; consult the table for model 233014S values — Manufacturer's 2330S-series dimensional diagram, not a product photograph or a scale drawing of this specific size. Refer to the specification table for the actual 233014S dimensions.

What's in the Box

KING TONY 233014S 7/16-inch 12-point standard socket ×1
