KING TONY 233014M 1/4-inch Drive 14 mm 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233014M
Order code: Y8EB6TJ
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233014M is the 14 mm metric 12-point standard socket in the 2330M family. Its 1/4-inch square drive fits matching hand ratchets and torque tools for turning appropriately sized nuts and bolts. This listing is for one socket, not a multi-size socket set.

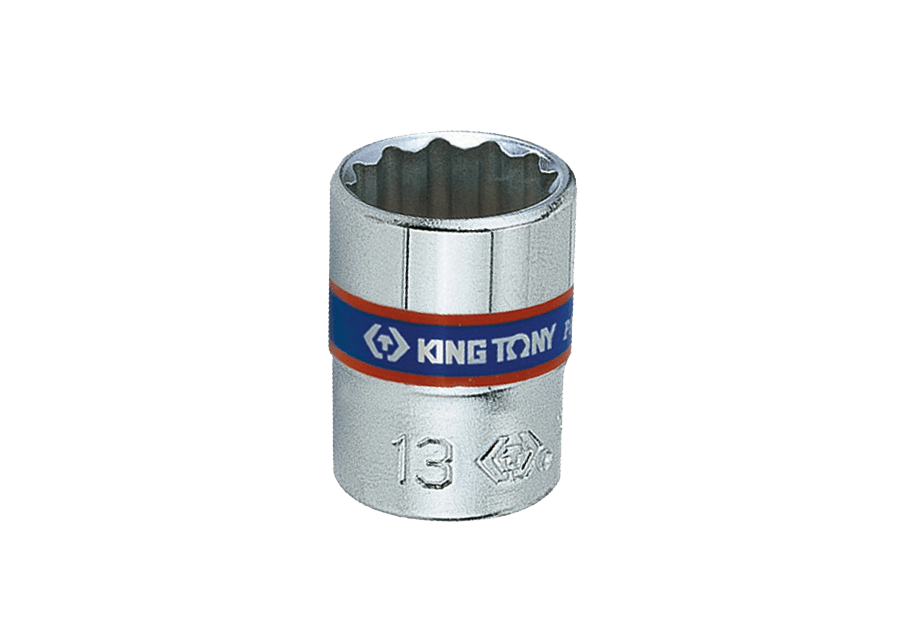

KING TONY 2330M-family representative socket marked 13; this listing is the 233014M 14 mm 1/4-inch drive 12-point socket, sold individually — Manufacturer's 2330M-family representative image: the photographed socket is marked 13 mm. This listing is the 233014M, 14 mm, 1/4-inch drive socket, sold individually. The photograph is not an exact 14 mm SKU image.

Features and use

14 mm metric 12-point working end and 1/4-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for the locating ball on a matching drive tool.
The manufacturer lists DIN 3124 and ISO 2725-1 as the applicable standards.

KING TONY 2330M-family cross-section dimension diagram showing D1, D2, ℓ and L; actual 233014M values appear in the specification table — The 2330M-family cross-section drawing illustrates the D1, D2, ℓ and L measurement positions only. The actual 233014M dimensions are listed in the specification table below.

Specifications

Brand	KING TONY
Model	233014M
Family	2330M
Socket size	14 mm
Working end	Metric 12-point
Square drive	1/4 inch (6.35 mm)
Socket type	Standard-length hand socket
Working-end outside diameter D1	19.6 mm
Drive-end outside diameter D2	18.5 mm
Working-end depth ℓ	9 mm
Overall length L	24 mm
Weight	31 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Applicable standards	DIN 3124; ISO 2725-1
Selling unit	One socket; sold individually

What's in the Box

KING TONY 233014M 14 mm 1/4-inch drive 12-point standard socket × 1
