KING TONY 233012S 1/4-inch Drive 3/8-inch 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233012S
Order code: Y8ENY5C
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$70.00/ 顆~~Was $100.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233012S is a standard-length hand socket with a 1/4-inch square drive and a 3/8-inch SAE 12-point opening. It is 24 mm long and sold as one socket for use with a matching manual drive tool and correctly sized imperial fasteners.

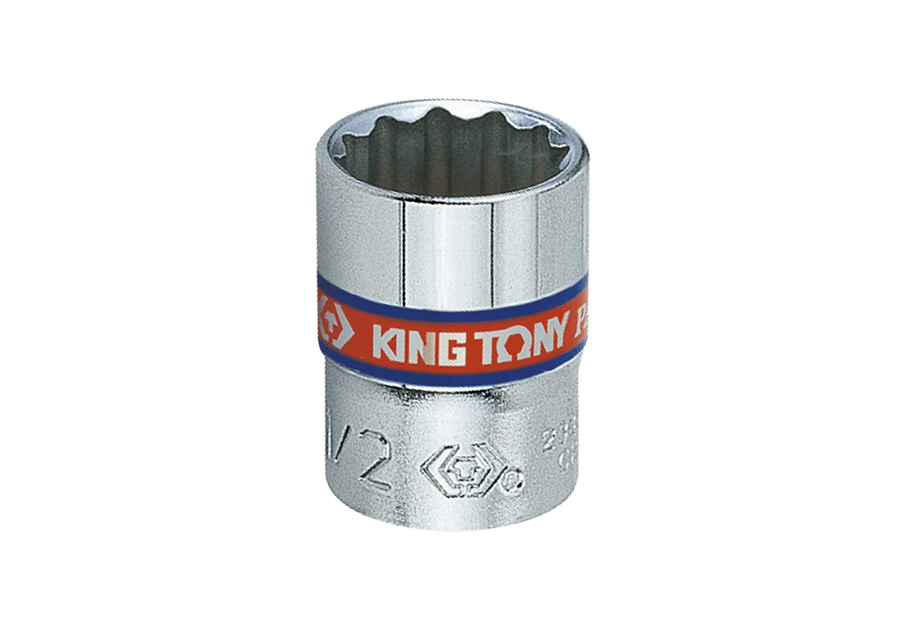

KING TONY 2330S series representative standard 12-point socket, pictured marking 1/2 inch; this 233012S listing is 3/8 inch with 1/4-inch drive, sold individually — Manufacturer's 2330S series representative image: the pictured size marking is 1/2 inch, not an exact photograph of this model. This 233012S listing is a 3/8-inch socket with a 1/4-inch drive, sold individually.

Features and use

3/8-inch SAE opening with a 12-point profile.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four detent grooves for matching 1/4-inch square-drive hand tools.
Manufacturer-listed reference standard: ANSI/ASME B107.1.

Manufacturer 2330S series dimension-position diagram; 233012S values are D1 14.2 mm, D2 13.0 mm, l 8 mm and L 24 mm — The manufacturer's series section diagram identifies D1, D2, l and L measurement positions; it is not an exact photograph of this model. Use the 233012S values in the specification table below.

Specifications

Brand	KING TONY
Manufacturer model	233012S
Square drive	1/4 inch
Socket size	3/8 inch (SAE)
Profile	12-point
Type	Standard-length hand socket
Material	Chrome vanadium alloy steel
Finish	Polished and chrome-plated
Socket-end outside diameter D1	14.2 mm
Drive-end outside diameter D2	13.0 mm
Working depth l	8 mm
Overall length L	24 mm
Weight	14 g
Reference standard	ANSI/ASME B107.1
Selling unit	One socket (顆)

What's in the Box

One 233012S 3/8-inch 12-point standard socket ×1. Ratchet handle and other drive tools are not included.
