Name: KING TONY 233012M 1/4 in Drive 12 mm 12-Point Standard Socket
Brand: KING TONY
SKU: KT-233012M
Price: 80 TWD
Availability: InStock

The KING TONY 233012M is a 12 mm metric, 12-point standard socket with a 1/4 in square drive. Its overall length is 24 mm. Select it to match the fastener size and a compatible manual drive tool. This listing is for one socket, not a socket set.

Features

12 mm metric size with a 12-point opening.
1/4 in square drive with four ball-retaining grooves.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Manufacturer specifies DIN 3124 and ISO 2725-1.

Representative series image

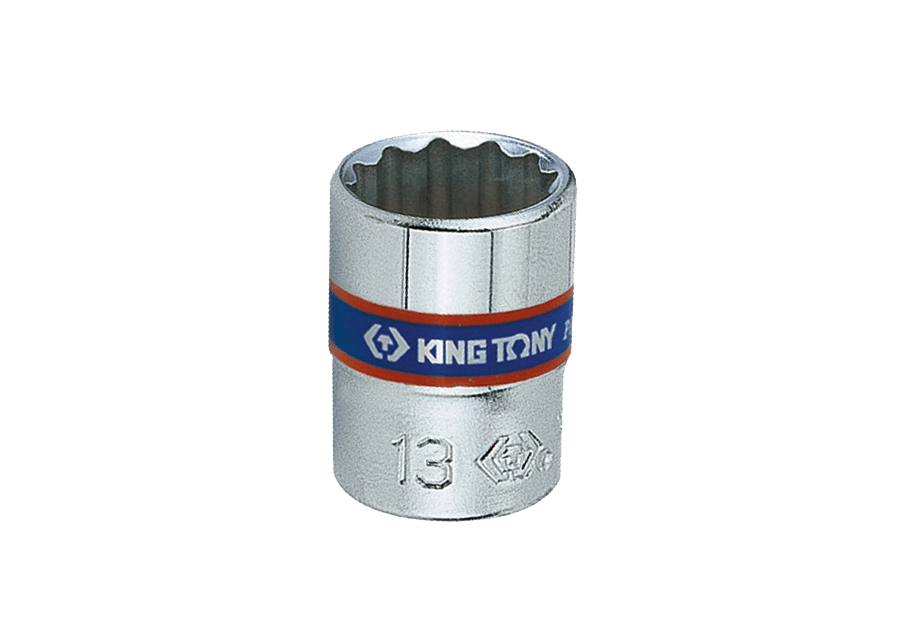

Manufacturer's KING TONY 2330M series socket illustration marked 13 mm; this 233012M listing is the 12 mm, 1/4 in drive socket sold individually

Manufacturer's KING TONY 2330M series representative image. The pictured socket is marked 13 mm, so this is not an exact-size photograph of the 12 mm item. This listing is model 233012M: 12 mm, 1/4 in square drive, sold individually.

Dimension guide

KING TONY 2330M series socket section drawing identifying D1, D2, l and L; see the 233012M specification table for actual dimensions

This manufacturer 2330M series section drawing identifies D1, D2, l and L. It is not a product photograph; the actual 233012M dimensions are listed in the specification table.

Specifications

Brand	KING TONY
Manufacturer model	233012M
Square drive	1/4 in
Socket size	12 mm (metric)
Opening profile	12-point
Socket format	Standard
Opening-end outside diameter D1	16.8 mm
Drive-end outside diameter D2	15.5 mm
Opening depth l	9 mm
Overall length L	24 mm
Weight	21 g
Material and finish	Chrome vanadium alloy steel; polished and chrome plated
Specified standards	DIN 3124; ISO 2725-1
Selling unit	One socket (workbook unit: 顆)

What's in the Box

233012M 12 mm metric 12-point standard socket ×1

Features

12 mm metric size with a 12-point opening.
1/4 in square drive with four ball-retaining grooves.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Manufacturer specifies DIN 3124 and ISO 2725-1.

Representative series image

Dimension guide

This manufacturer 2330M series section drawing identifies D1, D2, l and L. It is not a product photograph; the actual 233012M dimensions are listed in the specification table.

Specifications

Brand	KING TONY
Manufacturer model	233012M
Square drive	1/4 in
Socket size	12 mm (metric)
Opening profile	12-point
Socket format	Standard
Opening-end outside diameter D1	16.8 mm
Drive-end outside diameter D2	15.5 mm
Opening depth l	9 mm
Overall length L	24 mm
Weight	21 g
Material and finish	Chrome vanadium alloy steel; polished and chrome plated
Specified standards	DIN 3124; ISO 2725-1
Selling unit	One socket (workbook unit: 顆)

What's in the Box

233012M 12 mm metric 12-point standard socket ×1
