KING TONY 233011S 1/4-inch Drive 11/32-inch 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233011S
Order code: Y8E3YDJ
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$70.00/ 顆~~Was $100.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233011S is an 11/32-inch SAE 12-point standard socket with a 1/4-inch square drive. Use it with a matching hand ratchet or extension for appropriately sized hexagonal or 12-point fasteners. This listing is for one individual socket, not a socket set.

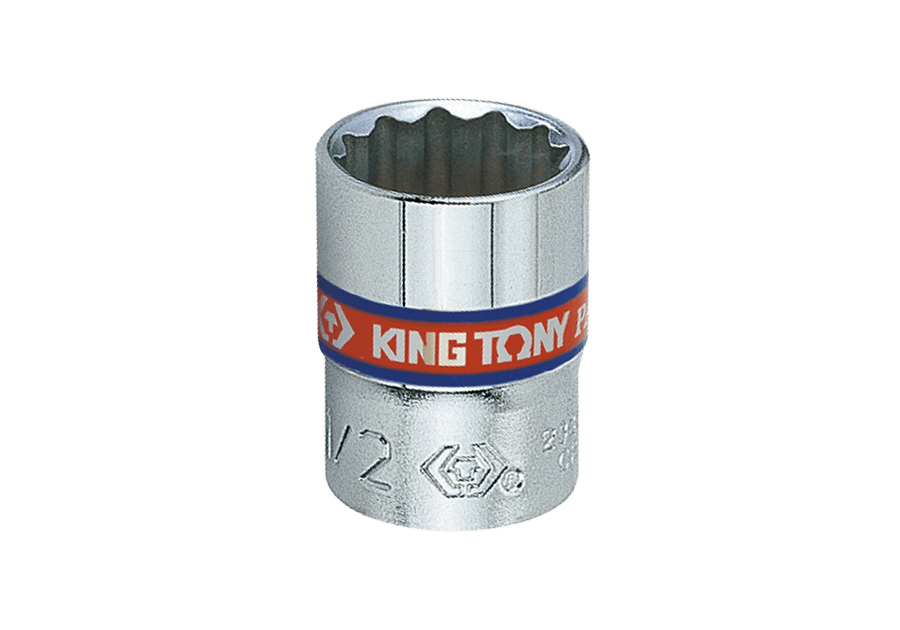

Manufacturer 2330S-series representative socket photograph marked 1/2 inch; this 233011S listing is an 11/32-inch socket with 1/4-inch square drive, sold individually. — Manufacturer-supplied KING TONY 2330S-series representative photograph. The pictured socket is marked 1/2 inch and is not an exact-size photograph of this item. This 233011S listing is the 11/32-inch socket with a 1/4-inch square drive, sold individually.

Features

11/32-inch SAE opening with a 12-point standard socket configuration.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
4 ball-retaining grooves for use with matching 1/4-inch square-drive hand tools.
Specified to ANSI/ASME B107.1.

Specifications

Brand	KING TONY
Manufacturer model	233011S
Square drive	1/4 inch
Socket size	11/32 inch (SAE)
Socket configuration	12-point standard socket
Socket-end outside diameter D1	13.7 mm
Drive-end outside diameter D2	12.2 mm
Working depth ℓ	8 mm
Overall length L	24 mm
Material	Chrome vanadium alloy steel
Finish	Polished, chrome-plated
Retention design	4 ball-retaining grooves
Standard	ANSI/ASME B107.1
Selling unit	One individual socket (顆)

KING TONY 2330S-series sectional dimension diagram identifying D1, D2, working depth and overall length L; exact 233011S values are listed in the specification table. — 2330S-series dimension-symbol diagram, not a physical product photograph. Exact 233011S dimensions: D1 13.7 mm; D2 12.2 mm; working depth 8 mm; overall length 24 mm.

Package contents

KING TONY 233011S 11/32-inch 12-point standard socket ×1
