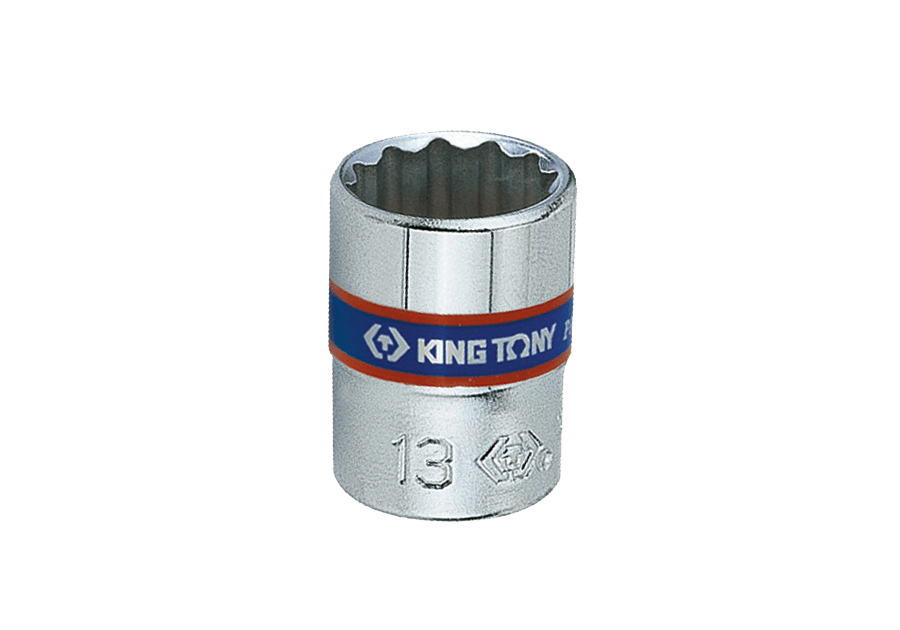

KING TONY 2330M 系列十二角標準套筒示意圖，照片標記為 13；本款 233011M 為 11 mm，單顆販售

KING TONY 233011M 1/4-inch Drive 11 mm 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233011M
Order code: Y8ESD86
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 233011M is the 11 mm metric 12-point standard hand socket in the 2330M series. It fits a 1/4-inch square drive and has a 24 mm overall length. Select the socket to match the fastener size. This listing is for one socket, not a multi-size socket set.

Features and selection

Metric 12-point opening in the exact 11 mm size.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball grooves for use with compatible 1/4-inch drive hand tools.
Manufacturer specifications reference DIN 3124 and ISO 2725-1.

Product image disclosure

Manufacturer 2330M-series representative 12-point socket marked 13; this 233011M listing is 11 mm and sold individually — This is the manufacturer's KING TONY 2330M-series representative photograph. The pictured socket is marked 13; it is not an exact 11 mm SKU photograph. This listing is model 233011M, size 11 mm, sold as one socket.

Specifications

Brand	KING TONY
Model	233011M
Square drive	1/4 inch
Socket size	11 mm
Profile	Metric 12-point
Type	Standard hand socket
Overall length L	24 mm
Internal length l shown in drawing	9 mm
Socket-end diameter D1	15.8 mm
Drive-end diameter D2	14.2 mm
Weight	18 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Referenced standards	DIN 3124; ISO 2725-1
Sale unit	One individual socket

Dimension key

Manufacturer 2330M-series dimension drawing labelled D1, D2, l and L; exact 233011M dimensions are in the specification table — This is a 2330M-series dimension-key drawing, not a product photograph. Refer to the table above for the exact D1, D2, l and L values of model 233011M.

What's in the Box

233011M 1/4-inch drive 11 mm 12-point standard socket × 1
