KING TONY 233009M 9mm 1/4-inch Drive 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233009M
Order code: Y8EEVQ7
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$70.00/ 顆~~Was $100.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233009M is the 9 mm metric 12-point standard socket in the 2330M family. Its 1/4-inch square drive fits matching hand socket tools, and its overall length is 24 mm. Check both fastener size and drive size when selecting a socket. This listing is for one socket, not a socket set.

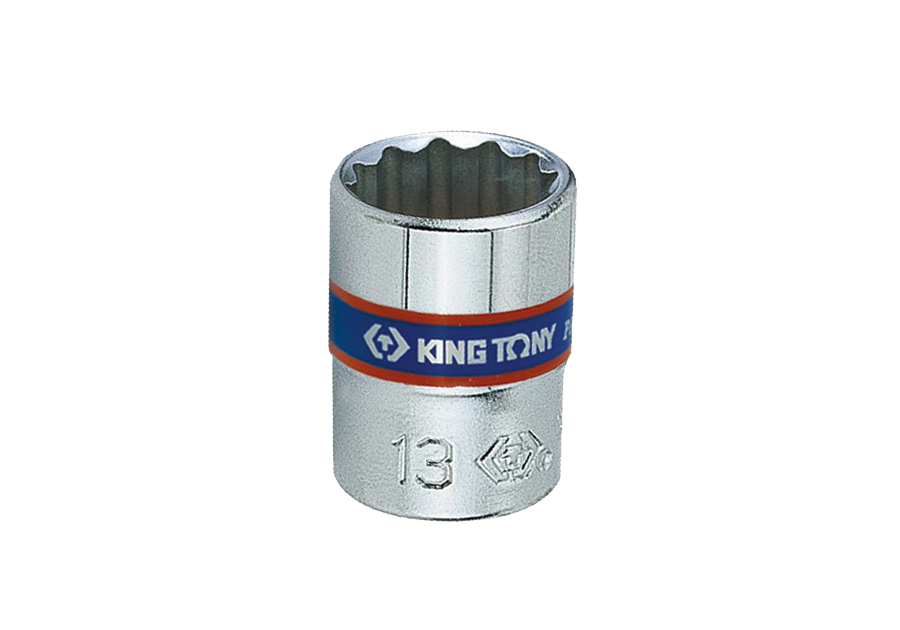

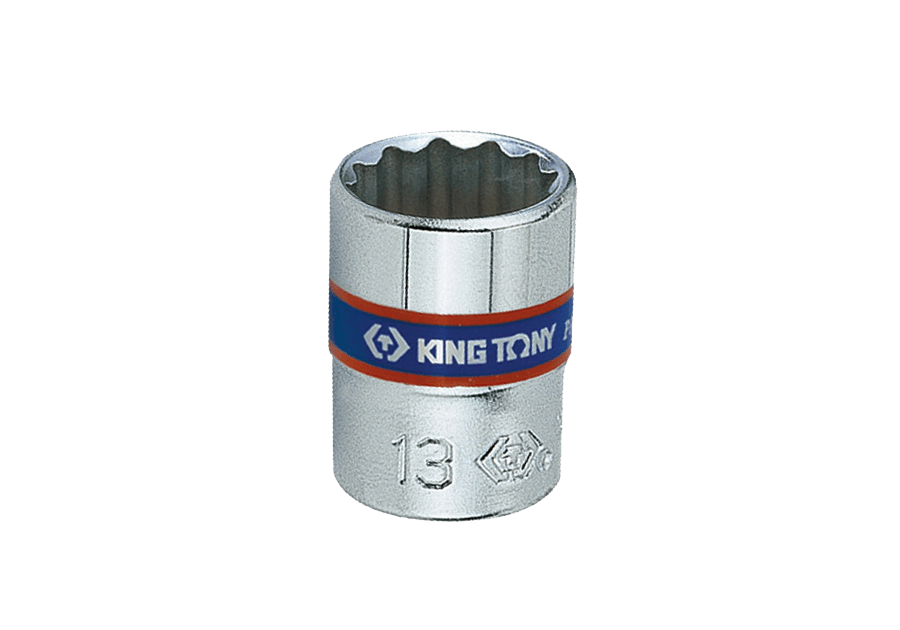

KING TONY 2330M representative 12-point standard socket photograph marked 13; this 233009M listing is the 9mm socket, sold individually — Original manufacturer's 2330M-series representative image: the photographed socket is marked 13. This 233009M listing is the 9 mm size, sold individually.

Features

Metric 12-point working end with a 1/4-inch square drive for hand socket tools.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four-ball retention grooves for the drive tool's positioning mechanism.
The manufacturer lists DIN 3124 and ISO 2725-1.

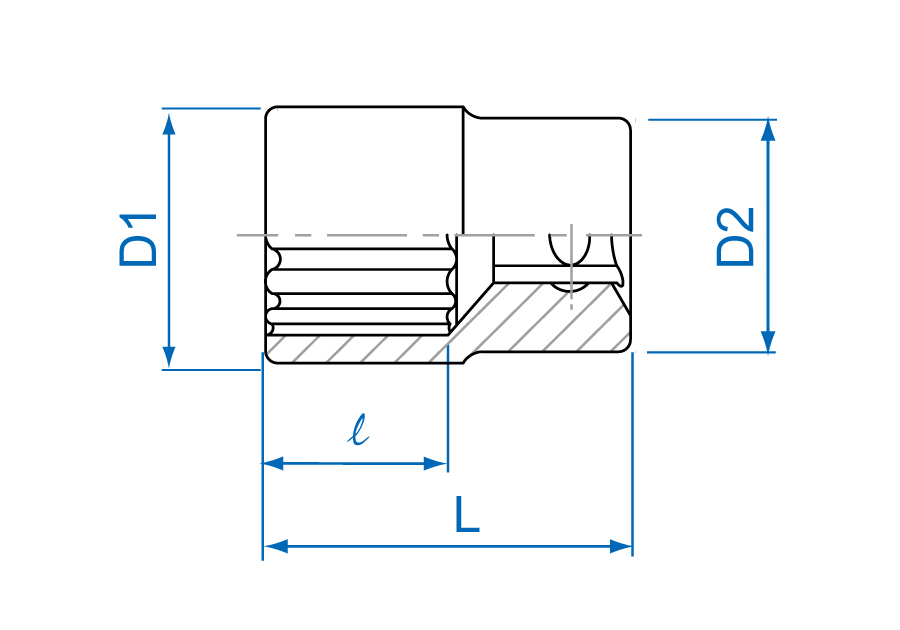

KING TONY 2330M sectional dimension diagram identifying D1, D2, l and L; not a product photograph — Manufacturer's family sectional drawing showing the D1, D2, l and L measurement locations. The exact 233009M values are in the table below; this is not a scale photograph of the 9 mm socket.

Specifications

Model	233009M
Family	2330M
Working end	Metric 9 mm, 12-point
Square drive	1/4 inch
Overall length L	24 mm
Working-end outside diameter D1	12.8 mm
Drive-end outside diameter D2	12.0 mm
Drawing dimension l	8 mm
Weight	12 g
Material and finish	Chrome-vanadium alloy steel; polished and chrome plated
Standards	DIN 3124, ISO 2725-1
Sales unit	One socket (顆)

What's in the Box

KING TONY 233009M 9 mm 12-point standard socket ×1
