KING TONY 233008S 1/4-inch Drive 12-Point Standard Socket, 1/4-inch

Brand: KING TONY
Manufacturer model number: 233008S
Order code: Y8EM8EP
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$60.00/ 顆~~Was $90.00~~-33%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 233008S is an imperial 12-point standard hand socket with a 1/4-inch square drive and a 1/4-inch socket size. It fits matching 1/4-inch-drive hand ratchets and handles for work on appropriately sized nuts and bolts. Sold individually.

Features

12-point working profile for 1/4-inch imperial fasteners.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves at the drive end.
24 mm standard length; the manufacturer cites ANSI/ASME B107.1.

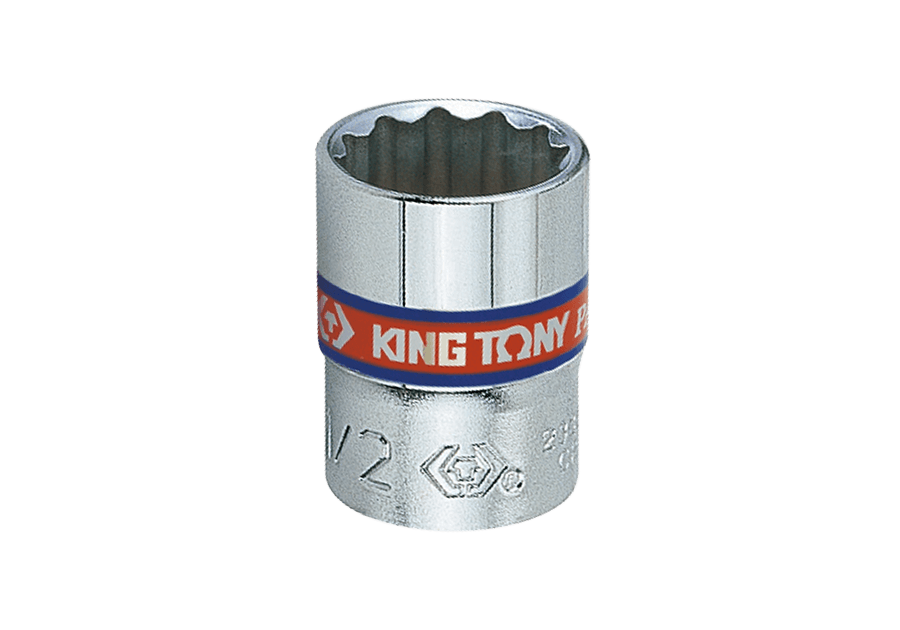

Manufacturer 2330S-series representative socket photograph marked 1/2; this 233008S listing is a 1/4-inch socket with a 1/4-inch square drive, sold individually. — Manufacturer-supplied KING TONY 2330S-series representative photograph. The pictured socket is marked 1/2 and is not an exact-size photograph of 233008S. This listing is the 1/4-inch socket with a 1/4-inch square drive, sold as one socket.

KING TONY 2330S-series dimensional diagram identifying D1, D2, ℓ and L; refer to the table for 233008S values. — Series dimension-location schematic, not a product photograph. Exact 233008S measurements are listed below.

Specifications

Brand	KING TONY
Model	233008S
Square drive	1/4 inch
Socket size	1/4 inch
Profile	Imperial 12-point
Type	Standard hand socket
Material and finish	Chrome vanadium alloy steel; polished and chrome plated
Working-end diameter D1	9.5 mm
Drive-end diameter D2	11.8 mm
Working-end depth ℓ	7 mm
Overall length L	24 mm
Weight	10 g
Standard cited	ANSI/ASME B107.1
Selling unit	One socket (顆)

What is included

KING TONY 233008S 1/4-inch 12-point standard socket ×1.

This is a single socket, not a socket set.
