Name: KING TONY 233008M 1/4-inch Drive 8 mm 12-Point Standard Socket
Brand: KING TONY
SKU: KT-233008M
Price: 60 TWD
Availability: InStock

KING TONY 233008M is an 8 mm metric twelve-point standard socket with a 1/4-inch square drive. Its 24 mm overall length and standard-depth profile suit hand-tool fastening work using a matching 1/4-inch drive handle. This offer is for one 8 mm socket, not a multi-size set.

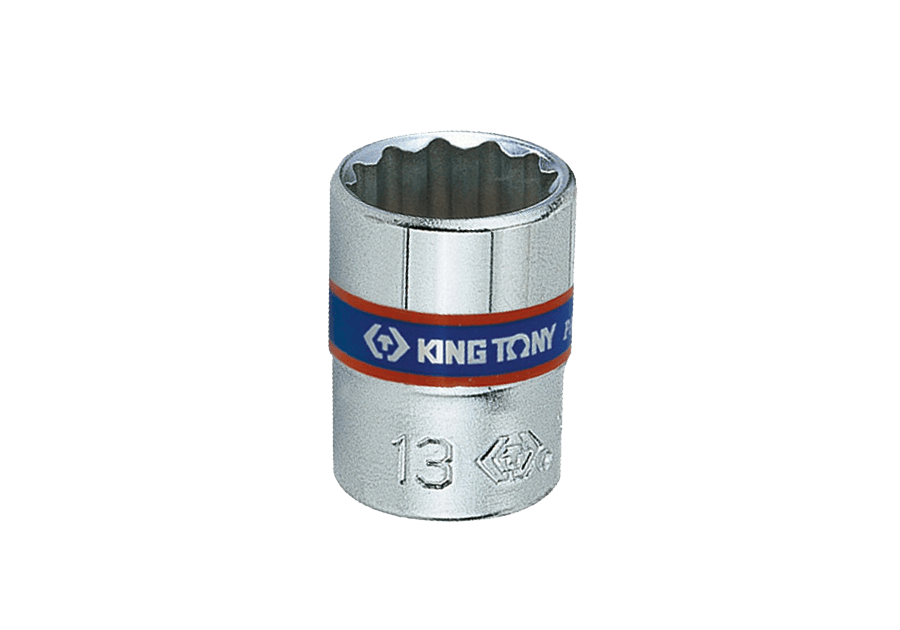

KING TONY 2330M-series representative twelve-point socket marked 13 mm; listed 233008M socket is 8 mm — Manufacturer's 2330M-series representative photograph: the pictured socket is visibly marked 13 mm. This listing is model 233008M, size 8 mm, sold individually; the photograph is not an exact-size image of this item.

FeaturesChrome vanadium construction

The manufacturer specifies chrome vanadium alloy steel with a polished, chrome-plated finish.

Twelve-point metric opening

The working opening is 8 mm. Use a compatible 1/4-inch square-drive hand-tool handle.

Four ball-retaining grooves

The 2330M family has four ball-retaining grooves for positioning on a compatible drive. The manufacturer lists DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Manufacturer model	233008M
SKU	KT-233008M
Square drive	1/4 inch
Metric opening	8 mm
Profile	12-point, standard socket
Working-end outside diameter D1	11.4 mm
Drive-end outside diameter D2	11.8 mm
Working depth ℓ	8 mm
Overall length L	24 mm
Weight	12 g
Material / finish	Chrome vanadium alloy steel / polished, chrome-plated
Manufacturer-listed standards	DIN 3124, ISO 2725-1
Selling unit	One socket (顆)

KING TONY 2330M-series socket section drawing with D1, D2, ℓ and L dimension arrows — Manufacturer's 2330M-series dimension diagram. D1 and D2 are the outside diameters at the working and drive ends, ℓ is the working depth, and L is overall length. For 233008M, use the exact 8 mm model values in the table above; the diagram has no numeric size labels.

What's in the Box

KING TONY 233008M 1/4-inch drive 8 mm twelve-point standard socket ×1

FeaturesChrome vanadium construction

The manufacturer specifies chrome vanadium alloy steel with a polished, chrome-plated finish.

Twelve-point metric opening

The working opening is 8 mm. Use a compatible 1/4-inch square-drive hand-tool handle.

Four ball-retaining grooves

The 2330M family has four ball-retaining grooves for positioning on a compatible drive. The manufacturer lists DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Manufacturer model	233008M
SKU	KT-233008M
Square drive	1/4 inch
Metric opening	8 mm
Profile	12-point, standard socket
Working-end outside diameter D1	11.4 mm
Drive-end outside diameter D2	11.8 mm
Working depth ℓ	8 mm
Overall length L	24 mm
Weight	12 g
Material / finish	Chrome vanadium alloy steel / polished, chrome-plated
Manufacturer-listed standards	DIN 3124, ISO 2725-1
Selling unit	One socket (顆)

What's in the Box

KING TONY 233008M 1/4-inch drive 8 mm twelve-point standard socket ×1
