KING TONY 233007S 1/4-Inch Drive 7/32-Inch 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233007S
Order code: Y8EGTU2
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$60.00/ 顆~~Was $90.00~~-33%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233007S is a 7/32-inch imperial 12-point standard socket for matching 1/4-inch square-drive hand tools. It measures 24 mm overall and weighs 10 g. Check both the fastener size and the drive size when selecting a socket. This listing is for one socket, not a socket set.

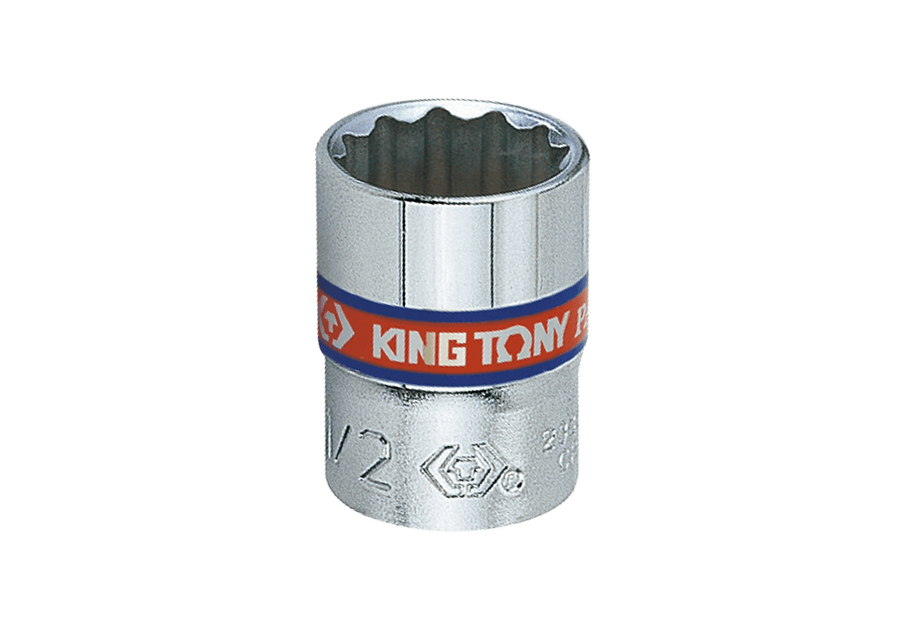

KING TONY 2330S-series representative 12-point socket photo marked 1/2; this 233007S listing is 7/32 inch with a 1/4-inch drive, sold individually — Manufacturer-supplied KING TONY 2330S-series representative photograph: the pictured socket is marked 1/2 and is not an exact-size photograph of this item. This listing is model 233007S, with a 7/32-inch opening and a 1/4-inch drive, sold as one socket.

Features

7/32-inch imperial opening with a 12-point profile and a 1/4-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for use with a matching square-drive tool.
The manufacturer lists ANSI/ASME B107.1 as the applicable standard.

Specifications

Brand / model	KING TONY / 233007S
Measurement system	Imperial
Square drive	1/4 inch
Socket opening	7/32 inch, 12-point
Overall length L	24 mm
Socket-end outside diameter D1	8.7 mm
Drive-end outside diameter D2	11.8 mm
Opening depth ℓ	6 mm
Weight	10 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Manufacturer-listed standard	ANSI/ASME B107.1
Sales unit	One socket

KING TONY 2330S-series dimensional schematic; for 233007S, D1 is 8.7 mm, D2 is 11.8 mm, ℓ is 6 mm and L is 24 mm — Manufacturer's dimensional schematic, not a product photograph. Refer to the specifications above for the exact 233007S dimensions.

What's in the Box

KING TONY 233007S 7/32-inch 12-point standard socket ×1

Reviews & Q&A

No reviews yet. Be the first to review this product.

Recently viewed

Features

7/32-inch imperial opening with a 12-point profile and a 1/4-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for use with a matching square-drive tool.
The manufacturer lists ANSI/ASME B107.1 as the applicable standard.

Specifications

Brand / model	KING TONY / 233007S
Measurement system	Imperial
Square drive	1/4 inch
Socket opening	7/32 inch, 12-point
Overall length L	24 mm
Socket-end outside diameter D1	8.7 mm
Drive-end outside diameter D2	11.8 mm
Opening depth ℓ	6 mm
Weight	10 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Manufacturer-listed standard	ANSI/ASME B107.1
Sales unit	One socket

What's in the Box

KING TONY 233007S 7/32-inch 12-point standard socket ×1
