KING TONY 233007M 1/4-inch Drive 7 mm 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 233007M
Order code: Y8E5BJP
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$60.00/ 顆~~Was $90.00~~-33%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233007M is a metric 7 mm, 12-point standard socket with a 1/4-inch square drive and a 24 mm overall length. It belongs to the hand-socket range. This listing is for one 7 mm socket, not a set containing the other sizes in the series.

Features and use

Metric 7 mm, 12-point working end for matching nuts and bolts.
1/4-inch (6.35 mm) square drive for use with a matching hand ratchet or extension.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves.
Manufacturer specifies DIN 3124 and ISO 2725-1.

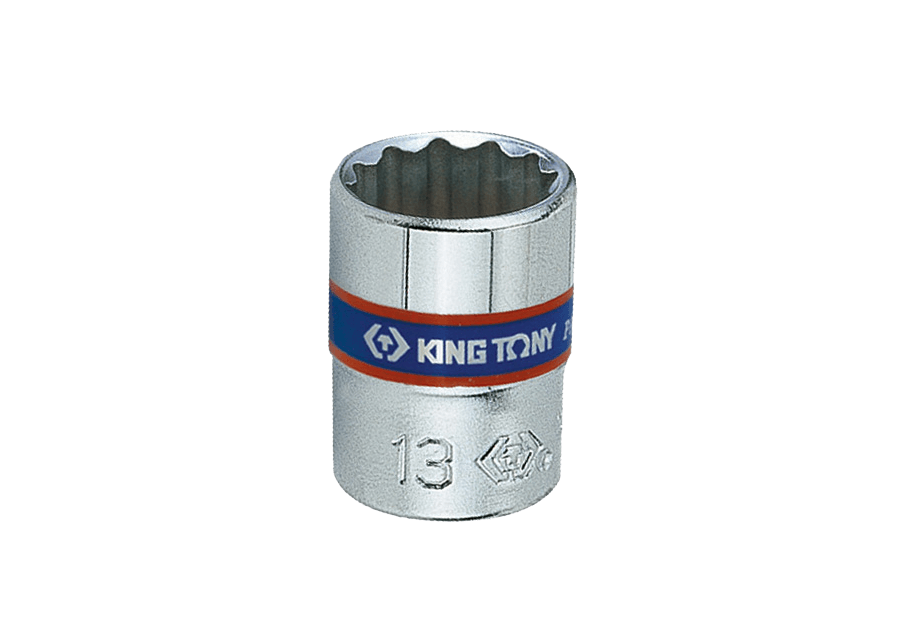

Manufacturer 2330M-series representative 12-point socket photo marked 13; this listing is the 233007M 7 mm socket, sold individually — Manufacturer-supplied KING TONY 2330M-series representative photograph: the pictured socket is marked 13 (13 mm), not the actual 7 mm size in this listing. The offered model is 233007M, size 7 mm, sold as one individual socket.

KING TONY 2330M-series socket section diagram identifying D1, D2, ℓ and L; actual 233007M dimensions are listed separately — 2330M-series section and dimension diagram, not a product photograph. The actual D1, D2, ℓ and L values for 233007M are listed in the specification table below.

Specifications

Brand	KING TONY
Manufacturer model	233007M
SKU	KT-233007M
Type	Metric 12-point standard hand socket
Square drive	1/4 inch (6.35 mm)
Across-flats size	7 mm
Socket-end outside diameter D1	10.3 mm
Drive-end outside diameter D2	11.8 mm
Working-end bore depth ℓ	7 mm
Overall length L	24 mm
Weight	10 g
Material / finish	Chrome vanadium alloy steel / polished, chrome-plated
Manufacturer-specified standards	DIN 3124; ISO 2725-1
Selling unit	顆 (one individual socket)

What's in the Box

233007M 7 mm 12-point standard socket ×1

A single socket, not a multi-size socket set.
