KING TONY 233006S 1/4-inch Drive 3/16-inch 12-point Standard Socket

Brand: KING TONY
Manufacturer model number: 233006S
Order code: Y8EMXLH
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$60.00/ 顆~~Was $90.00~~-33%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 233006S is a 3/16-inch SAE 12-point standard-length hand socket with a 1/4-inch square drive. It is intended for a matching manual ratchet or handle and is sold as one individual socket, not as a socket set.

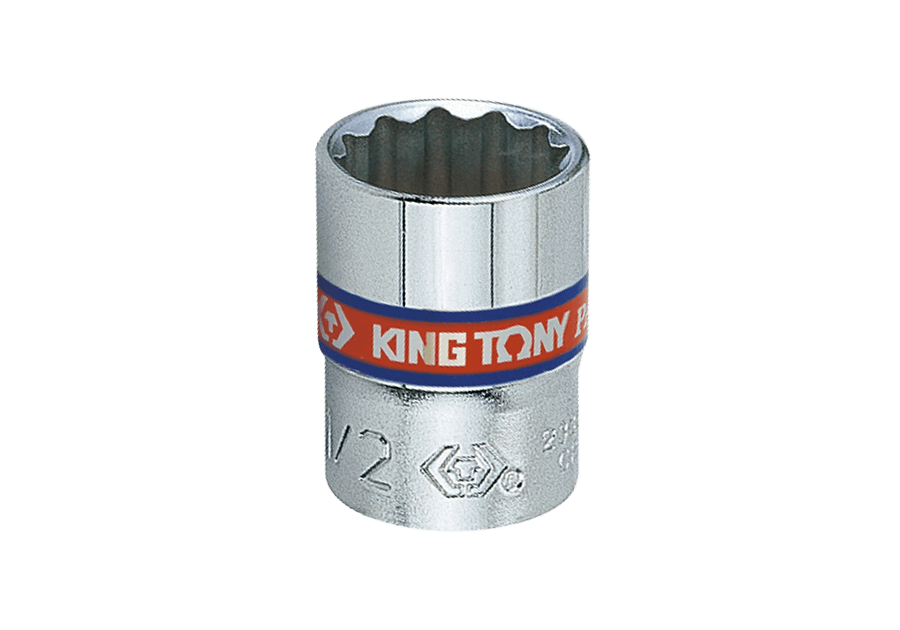

KING TONY 2330S-series representative 12-point standard socket, marked 1/2 inch; this 233006S listing is 3/16 inch with 1/4-inch drive, sold singly — Manufacturer-supplied 2330S-series representative image of the same socket design. The photographed socket is visibly marked 1/2 inch, not the 3/16-inch size sold here. This listing is model 233006S with a 1/4-inch drive and a 3/16-inch opening, sold individually.

Features and use

12-point opening for the specified 3/16-inch fastener size; verify the fastener size before use.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves at the drive end for compatible manual drive tools.
24 mm overall length in the standard hand-socket configuration, not a deep or impact socket.
The manufacturer lists ANSI/ASME B107.1.

KING TONY 2330S-series socket dimension diagram showing D1, D2, l and L; see the table for actual 233006S dimensions — The 2330S-series drawing identifies dimension positions; it is not a product photograph or a scale drawing. Actual 233006S values: L = 24 mm, D1 = 7.9 mm, D2 = 11.8 mm and l = 6 mm.

Specifications

Brand	KING TONY
Model	233006S
Series	2330S
Square drive	1/4 inch (6.35 mm)
Socket size	3/16 inch
Socket profile	12-point
Type	Standard-length hand socket
Overall length L	24 mm
Working-end outside diameter D1	7.9 mm
Drive-end outside diameter D2	11.8 mm
Internal dimension l	6 mm
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention design	Four ball-retaining grooves
Standard	ANSI/ASME B107.1
Sale unit	One socket

What's in the Box

KING TONY 233006S 1/4-inch-drive, 3/16-inch 12-point standard socket × 1
