Name: KING TONY 227506M 1/4-inch Drive E6 External-Star Socket, 50 mm
Brand: KING TONY
SKU: KT-227506M
Price: 160 TWD
Availability: InStock

The KING TONY 227506M is an E6 hand socket for external six-lobe star fasteners. It has a 1/4-inch square drive and an overall length of 50 mm. Match it with a hand tool of the same drive size. This listing is priced for one socket.

Features and application

Female E6 six-lobe star recess for matching external-star fastener heads.
1/4-inch square drive: check both the tool drive size and the fastener E size before selecting.
Chrome vanadium alloy steel with a polished, chrome-plated finish. DIN 3120 is the manufacturer-listed standard.

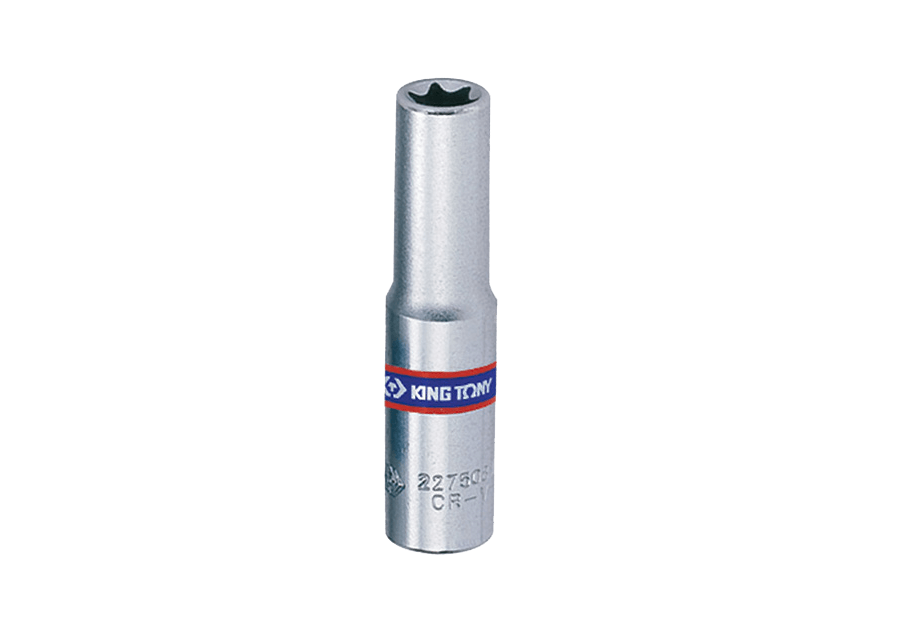

Manufacturer 2275M-series representative socket image, not an exact E6 photo; this listing is KING TONY 227506M, 1/4-inch drive, E6, 50 mm, sold individually — Manufacturer-supplied KING TONY 2275M-series representative image, not an exact E6 model photograph. Size and model markings in the image may differ. This listing is model 227506M, size E6, 50 mm overall length, sold as one socket.

Specifications

Brand	KING TONY
Manufacturer model	227506M
Tool type	Hand socket for external six-lobe star fasteners
Square drive	1/4 inch
External-star size	E6
Overall length L	50 mm
Socket-end outside diameter D1	8.0 mm
Drive-end outside diameter D2	11.8 mm
Star-recess depth l	6.0 mm
Weight	24 g
Material and finish	Chrome vanadium alloy steel; polished, chrome plated
Manufacturer-listed standard	DIN 3120
Priced unit	顆 (one socket)

KING TONY 2275M-series sectional dimension diagram showing D1, D2, l and L; model 227506M has a 50 mm overall length — The manufacturer's 2275M-series section drawing identifies D1, D2, l and L. Use the model-specific table above for 227506M values. This is a technical illustration, not a product photograph.

What's in the Box

227506M E6 external-star socket ×1 (priced unit: one socket)

Features and application

Female E6 six-lobe star recess for matching external-star fastener heads.
1/4-inch square drive: check both the tool drive size and the fastener E size before selecting.
Chrome vanadium alloy steel with a polished, chrome-plated finish. DIN 3120 is the manufacturer-listed standard.

Specifications

Brand	KING TONY
Manufacturer model	227506M
Tool type	Hand socket for external six-lobe star fasteners
Square drive	1/4 inch
External-star size	E6
Overall length L	50 mm
Socket-end outside diameter D1	8.0 mm
Drive-end outside diameter D2	11.8 mm
Star-recess depth l	6.0 mm
Weight	24 g
Material and finish	Chrome vanadium alloy steel; polished, chrome plated
Manufacturer-listed standard	DIN 3120
Priced unit	顆 (one socket)

What's in the Box

227506M E6 external-star socket ×1 (priced unit: one socket)
