Name: KING TONY 227505M E5 External Star Socket, 1/4-inch Drive, 50 mm
Brand: KING TONY
SKU: KT-227505M
Price: 160 TWD
Availability: InStock

The KING TONY 227505M is an E5 socket for external star fasteners, with a 1/4-inch square drive and an overall length of 50 mm. It is the E5 model in the 2275M series and is sold as one socket, not a socket set.

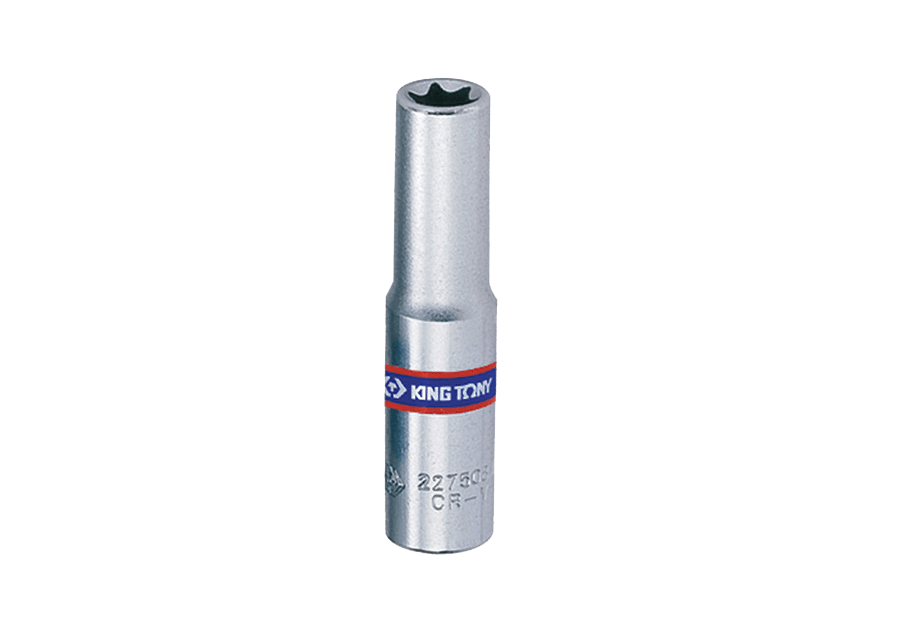

Manufacturer representative KING TONY 2275M-series long socket; pictured markings do not confirm E5. This listing is 227505M E5, 1/4-inch drive, 50 mm, sold individually — Manufacturer-supplied KING TONY 2275M-series representative photograph, not a confirmed photograph of this exact E5 socket. Physical markings may show a different size. This listing is 227505M E5, with 1/4-inch square drive and 50 mm overall length, sold individually.

Features

E5 internal star profile for external star fasteners.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
1/4-inch square drive, made to DIN 3120.

Manufacturer 2275M-series socket sectional drawing showing D1, D2, l and L; not a product photograph — Manufacturer 2275M-series dimension diagram. The D1, D2, l and L values for this model are listed below; this is not a scale photograph of the E5 socket.

Specifications

Model	227505M
Series	2275M
Tool type	Long external star socket
Socket profile	E5
Square drive	1/4 inch
Working-end diameter D1	7.0 mm
Drive-end diameter D2	11.8 mm
Profile depth l	4.0 mm
Overall length L	50 mm
Weight	22 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome-plated
Standard	DIN 3120
Sales unit	One socket

What's in the Box

KING TONY 227505M E5 external star socket ×1

Features

E5 internal star profile for external star fasteners.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
1/4-inch square drive, made to DIN 3120.

Specifications

Model	227505M
Series	2275M
Tool type	Long external star socket
Socket profile	E5
Square drive	1/4 inch
Working-end diameter D1	7.0 mm
Drive-end diameter D2	11.8 mm
Profile depth l	4.0 mm
Overall length L	50 mm
Weight	22 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome-plated
Standard	DIN 3120
Sales unit	One socket

What's in the Box

KING TONY 227505M E5 external star socket ×1
