Name: KING TONY 227504M 1/4-inch Drive E4 Star Socket, 50mm
Brand: KING TONY
SKU: KT-227504M
Price: 160 TWD
Availability: InStock

The KING TONY 227504M is an E4 star socket with a 1/4-inch square drive for external-star fasteners. It is 50 mm long and made from chrome vanadium alloy steel with a polished, chrome-plated finish. This listing is for one socket.

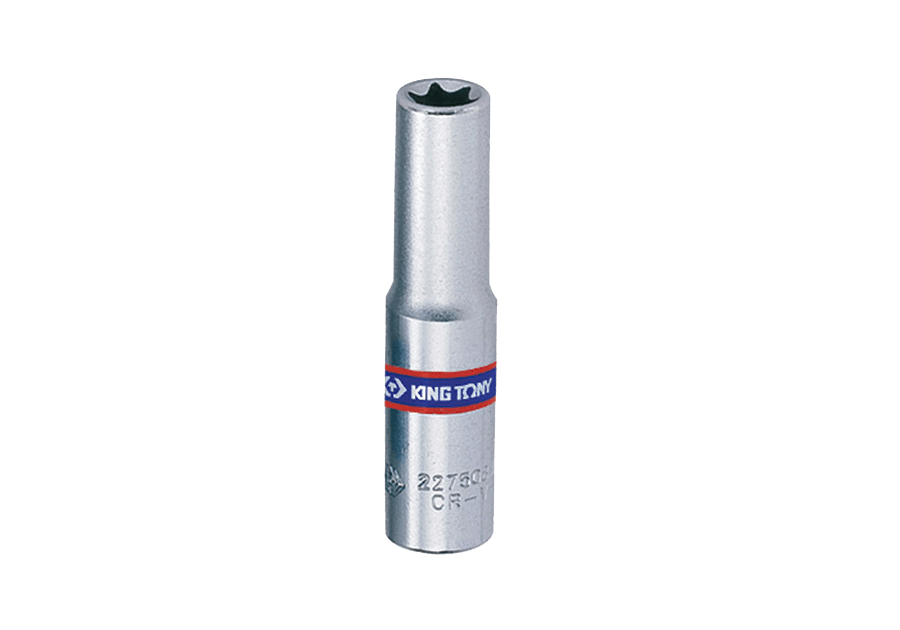

Manufacturer 2275M-series representative socket photo; markings may differ. This product is 227504M, E4, 50 mm long, sold individually — Manufacturer's 2275M-series representative image; the engraved model or size may differ. The actual product listed is 227504M, E4, with a 1/4-inch drive and 50 mm overall length, sold individually.

Features and use

E4 star profile for matching external-star fasteners, rather than conventional hexagonal nuts.
1/4-inch square drive; match the drive size when selecting a handle or ratchet.
Chrome vanadium alloy steel with a polished, chrome-plated surface.
The manufacturer specifies DIN 3120.

KING TONY 2275M-series section drawing labelled D1, D2, l and L; see the specification table for 227504M dimensions — Manufacturer's series drawing identifies the dimension symbols; it is not a scale photograph. The exact 227504M values are listed below.

Specifications

Brand	KING TONY
Manufacturer model	227504M
Square drive	1/4 inch
Star size	E4
Working-end outside diameter D1	6.0 mm
Drive-end outside diameter D2	11.8 mm
Working-end recess depth l	3.6 mm
Overall length L	50 mm
Weight	21 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome-plated
Manufacturer-specified standard	DIN 3120
Priced unit	One socket (顆)

Single-unit contents

KING TONY 227504M 1/4-inch drive E4 star socket ×1

Features and use

E4 star profile for matching external-star fasteners, rather than conventional hexagonal nuts.
1/4-inch square drive; match the drive size when selecting a handle or ratchet.
Chrome vanadium alloy steel with a polished, chrome-plated surface.
The manufacturer specifies DIN 3120.

Specifications

Brand	KING TONY
Manufacturer model	227504M
Square drive	1/4 inch
Star size	E4
Working-end outside diameter D1	6.0 mm
Drive-end outside diameter D2	11.8 mm
Working-end recess depth l	3.6 mm
Overall length L	50 mm
Weight	21 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome-plated
Manufacturer-specified standard	DIN 3120
Priced unit	One socket (顆)

Single-unit contents

KING TONY 227504M 1/4-inch drive E4 star socket ×1
