Name: KING TONY 223515M 1/4-inch Drive 15 mm 6-Point Deep Socket
Brand: KING TONY
SKU: KT-223515M
Price: 140 TWD
Availability: InStock

The KING TONY 223515M is a 15 mm metric, 6-point deep socket with a 1/4-inch square drive and a 50 mm overall length. Pair it with a hand-operated ratchet of the same drive size, and check the fastener size and available clearance before selecting it. This listing is for one socket.

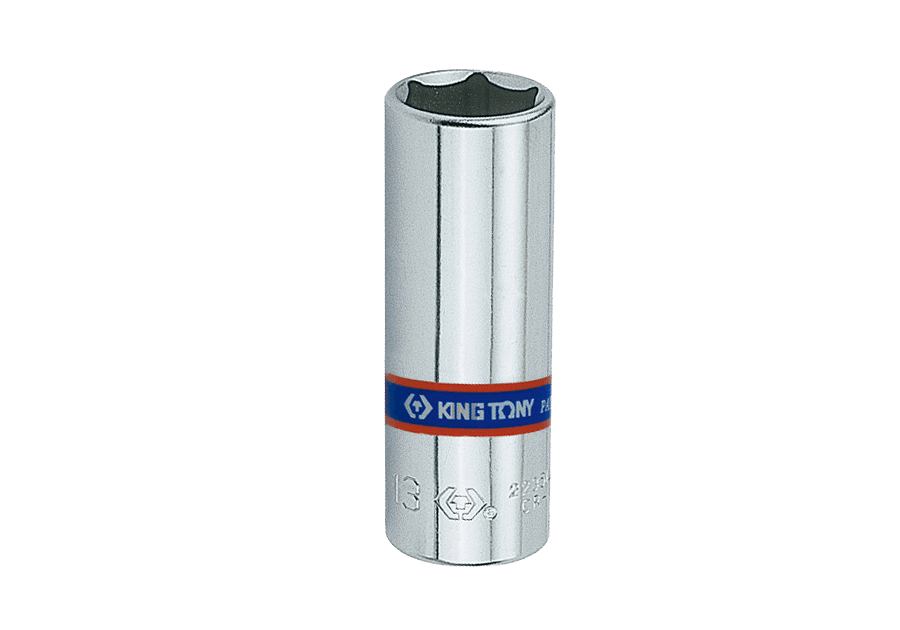

Manufacturer 2235M-series deep socket photograph marked 13 mm; this listing is the 15 mm 223515M, sold individually — Manufacturer-supplied 2235M-series representative photograph: the pictured socket is marked 13 mm. This listing is the 15 mm 223515M, with a 50 mm overall length, sold individually—not a socket set.

Features

15 mm metric, 6-point opening for matching hexagonal nuts and bolt heads.
1/4-inch square drive with four ball-retaining grooves.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
The manufacturer specifies DIN 3124 and ISO 2725-1.

Manufacturer 2235M-series sectional dimension diagram, not a photograph; the 223515M is 15 mm with a 50 mm overall length — Manufacturer 2235M-series sectional dimension diagram, not a product photograph. For the 223515M, D1 and D2 are both 20.9 mm, ℓ is 25 mm and L is 50 mm.

Specifications

Brand	KING TONY
Manufacturer model	223515M
Tool type	Metric 6-point deep hand socket
Square drive	1/4 inch
Socket size	15 mm
Opening profile	6-point
Overall length L	50 mm
Diagram dimension ℓ	25 mm
Socket-end diameter D1	20.9 mm
Drive-end diameter D2	20.9 mm
Weight	71 g
Material	Chrome-vanadium alloy steel
Finish	Polished, chrome plated
Manufacturer-specified standards	DIN 3124, ISO 2725-1
Selling unit	One socket (顆)

What's in the Box

KING TONY 223515M 15 mm metric 6-point deep socket ×1

Features

15 mm metric, 6-point opening for matching hexagonal nuts and bolt heads.
1/4-inch square drive with four ball-retaining grooves.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
The manufacturer specifies DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Manufacturer model	223515M
Tool type	Metric 6-point deep hand socket
Square drive	1/4 inch
Socket size	15 mm
Opening profile	6-point
Overall length L	50 mm
Diagram dimension ℓ	25 mm
Socket-end diameter D1	20.9 mm
Drive-end diameter D2	20.9 mm
Weight	71 g
Material	Chrome-vanadium alloy steel
Finish	Polished, chrome plated
Manufacturer-specified standards	DIN 3124, ISO 2725-1
Selling unit	One socket (顆)

What's in the Box

KING TONY 223515M 15 mm metric 6-point deep socket ×1
