KING TONY 223512S 1/4-inch Drive 3/8-inch 6-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 223512S
Order code: Y8EAKBZ
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$100.00/ 顆~~Was $140.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 223512S is a 6-point imperial deep socket with a 3/8-inch opening and a 1/4-inch square drive. Its overall length is 50 mm. The drive size describes the tool connection, while the 3/8-inch opening fits the fastener head; check both sizes when selecting a socket. This listing is for one socket.

Features and application

6-point opening for matching 3/8-inch imperial hex nuts or bolt heads.
Deep socket design with a 50 mm overall length and a 15 mm internal opening depth l.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves; the manufacturer specifies ANSI/ASME B107.1.

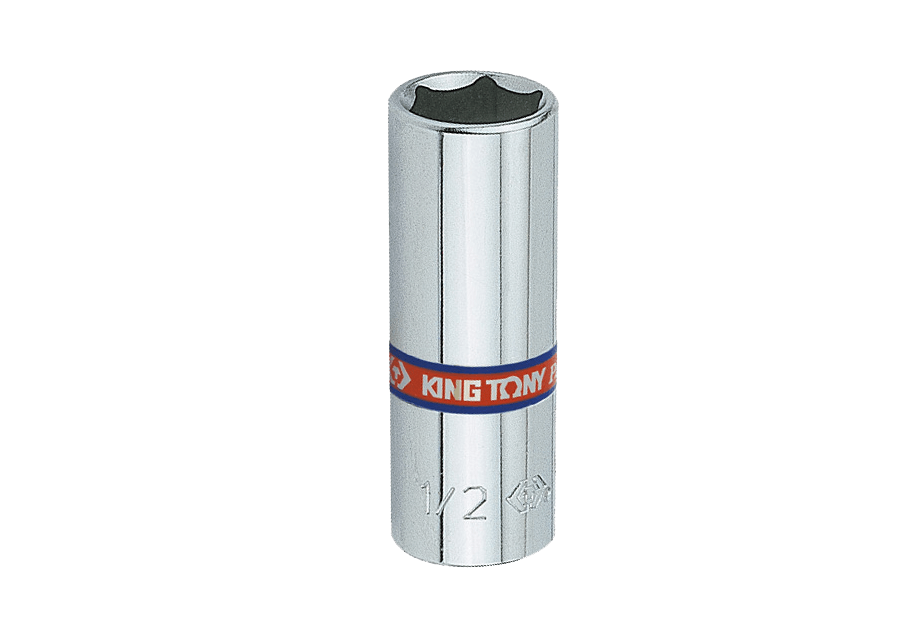

KING TONY 2235S-series deep socket, pictured marking 1/2 inch; this 223512S listing is 3/8 inch with 1/4-inch drive, sold individually — Manufacturer's KING TONY 2235S-series representative image. The pictured socket is marked 1/2 inch and is not an exact-size photograph of this item. This 223512S listing is the 3/8-inch socket with a 1/4-inch drive, sold individually.

KING TONY 2235S-series socket D1, D2, l and L measurement diagram; see the specification table for actual 223512S dimensions — The manufacturer drawing defines the D1, D2, l and L measurement locations. Actual dimensions for 223512S are listed in the specification table below.

Specifications

Brand	KING TONY
Model	223512S
Square drive	1/4 inch
Imperial opening	3/8 inch
Opening profile	6-point
Type	Deep socket
Opening-end outside diameter D1	14.5 mm
Drive-end outside diameter D2	14.5 mm
Internal opening depth l	15 mm
Overall length L	50 mm
Weight	42 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Manufacturer-specified standard	ANSI/ASME B107.1
Sales unit	One socket (顆)

What's in the Box

223512S 3/8-inch 6-point deep socket ×1
