Name: KING TONY 223512M 1/4-inch Drive 12 mm Metric 6-Point Deep Socket
Brand: KING TONY
SKU: KT-223512M
Price: 110 TWD
Availability: InStock

KING TONY 223512M is a 12 mm metric six-point deep socket with a 1/4-inch square drive. Its 50 mm overall length and 21 mm working depth are specified for this exact model. This listing is for one socket.

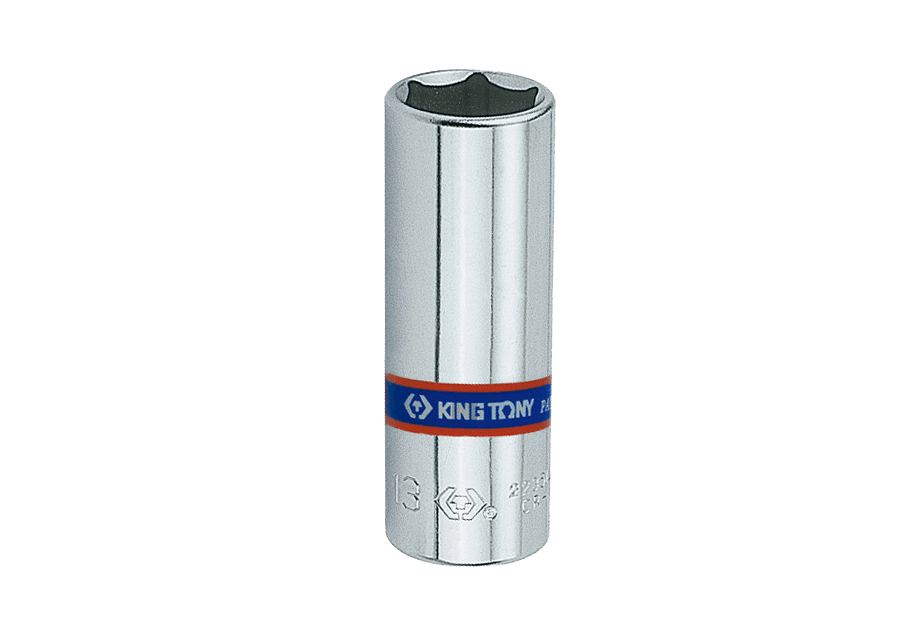

Manufacturer 2235M-series six-point deep socket representative photo, visibly marked 13; the listed 223512M is 12 mm, sold individually.

The manufacturer uses this 2235M-series representative photograph for the verified size family. The pictured socket is visibly marked 13; this listing is the 12 mm 223512M, sold individually. The image is not an exact-size photograph.

Features

12 mm metric six-point opening for matching hexagonal fasteners.
1/4-inch square drive for compatible hand-tool drive accessories.
Chrome vanadium alloy steel, polished and chrome plated.
Four ball-retaining grooves, as specified for the 2235M family.
Manufactured according to DIN 3124 and ISO 2725-1.

Specifications

Manufacturer	KING TONY
Model	223512M
Drive size	1/4 inch
Socket opening	12 mm, metric six-point
Overall length L	50 mm
Working depth ℓ	21 mm
Outer diameter D1	16.8 mm
Outer diameter D2	16.8 mm
Weight	48 g
Material and finish	Chrome vanadium alloy steel; polished, chrome plated
Standards	DIN 3124; ISO 2725-1
Selling unit	One socket (workbook unit: 顆)

Manufacturer 2235M-series socket section diagram showing D1, D2, working depth ℓ and overall length L; exact 223512M values are in the specification table.

This original manufacturer section diagram illustrates the shared 2235M design. D1 and D2 identify the two outer diameters, ℓ is the working depth and L is the overall length; the exact 223512M values are listed above.

What is included

223512M 12 mm metric six-point deep socket ×1

Features

12 mm metric six-point opening for matching hexagonal fasteners.
1/4-inch square drive for compatible hand-tool drive accessories.
Chrome vanadium alloy steel, polished and chrome plated.
Four ball-retaining grooves, as specified for the 2235M family.
Manufactured according to DIN 3124 and ISO 2725-1.

Specifications

Manufacturer	KING TONY
Model	223512M
Drive size	1/4 inch
Socket opening	12 mm, metric six-point
Overall length L	50 mm
Working depth ℓ	21 mm
Outer diameter D1	16.8 mm
Outer diameter D2	16.8 mm
Weight	48 g
Material and finish	Chrome vanadium alloy steel; polished, chrome plated
Standards	DIN 3124; ISO 2725-1
Selling unit	One socket (workbook unit: 顆)

What is included

223512M 12 mm metric six-point deep socket ×1
