KING TONY 223511M 1/4-inch Drive 11mm 6-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 223511M
Order code: Y8E728B
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$110.00/ 顆~~Was $160.00~~-31%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 223511M is the 11 mm metric 6-point deep hand socket in the 2235M family. It has a 1/4-inch square drive and a 50 mm overall length for use with a matching manual ratchet or handle. This listing is for one 11 mm socket, not an 11/12 mm two-piece set.

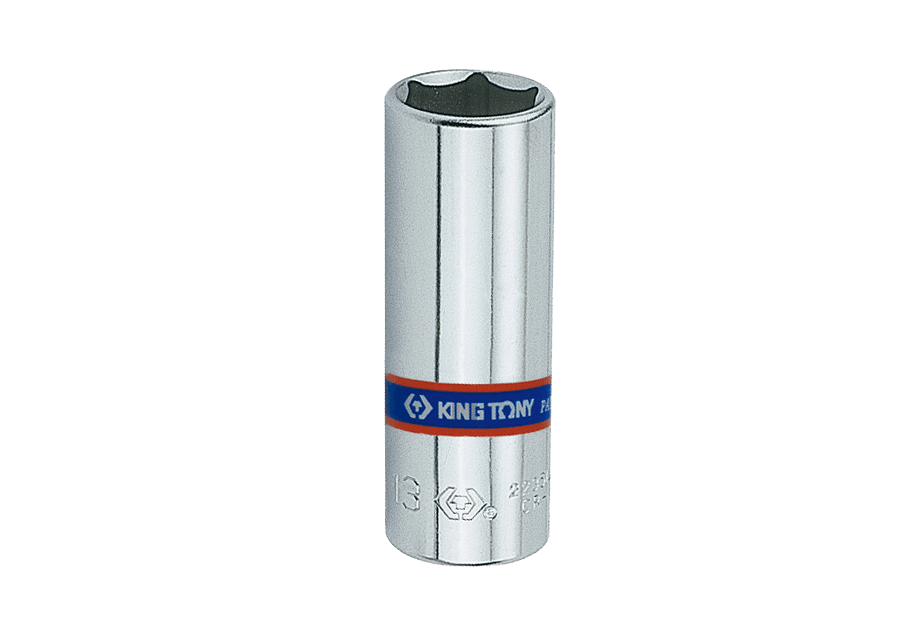

KING TONY 2235M-series representative deep socket marked 13; this listing is the 11mm 223511M socket, sold individually — Manufacturer's 2235M-series representative photograph: the pictured socket is marked 13 mm. This listing is model 223511M, size 11 mm, sold individually.

Features and use

11 mm metric 6-point working end for matching hexagonal fasteners.
Deep socket configuration with a 50 mm overall length; check the available working space when selecting a socket.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for compatible 1/4-inch manual square-drive tools.
Manufacturer lists DIN 3124 and ISO 2725-1.

Specifications

Model	223511M
Series	2235M
Square drive	1/4 inch
Socket size	11 mm
Working end	Metric 6-point / deep
Overall length L	50 mm
Socket depth ℓ	21 mm
Outside diameter D1 / D2	15.8 / 15.8 mm
Weight	43 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention	Four ball-retaining grooves
Manufacturer-listed standards	DIN 3124, ISO 2725-1
Sales unit	One socket (priced per 顆)

KING TONY 2235M deep socket technical drawing identifying D1, D2, socket depth ell and overall length L — This original manufacturer drawing shows dimension locations for the 2235M family, not a physical-tool photograph. For model 223511M, D1 and D2 are 15.8 mm, ℓ is 21 mm and L is 50 mm.

What's in the Box

KING TONY 223511M 11 mm metric 6-point deep socket ×1
