KING TONY 223507S 1/4" Drive 7/32" 6-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 223507S
Order code: Y8ERNPY
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$100.00/ 顆~~Was $140.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 223507S is a 7/32-inch imperial 6-point deep hand socket with a 1/4-inch square drive and an overall length of 50 mm. Pair it with a hand socket tool of the same drive size, and check both the fastener size and tool interface before use.

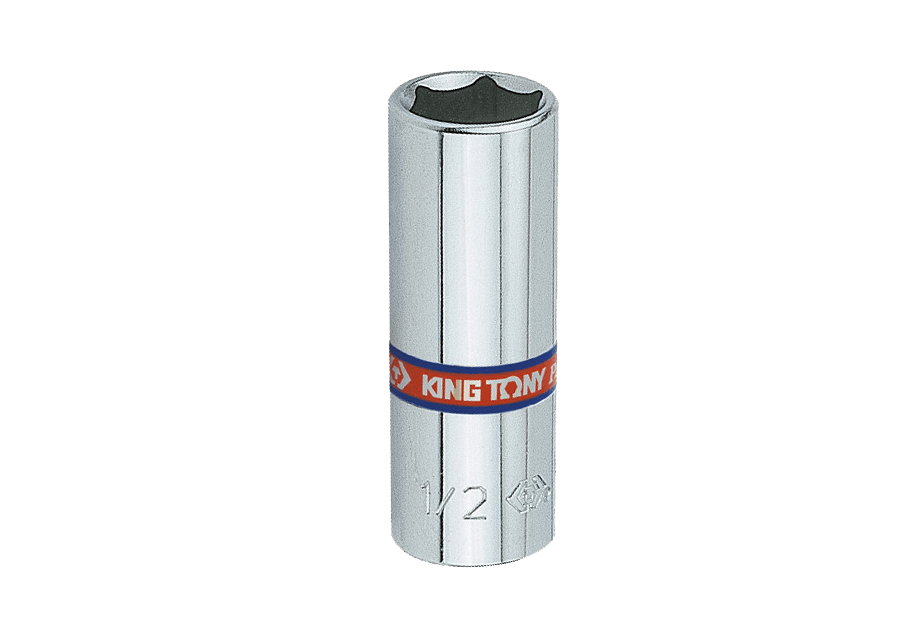

KING TONY 2235S-series representative deep socket marked 1/2; this 223507S listing is 7/32 inch with 1/4-inch drive, sold individually — Manufacturer's 2235S-series representative photograph, marked 1/2 inch; it is not an exact-size photograph of this item. This 223507S listing is the 7/32-inch socket with 1/4-inch square drive, sold individually.

Features

7/32-inch six-point opening and a deep body for matching imperial hex fasteners.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball grooves for use with a compatible 1/4-inch square-drive hand socket tool.
The manufacturer specifies ANSI/ASME B107.1.

KING TONY 2235S-series socket section diagram showing D1, D2, l and L; see the table for exact 223507S values — Manufacturer's series section diagram showing the D1, D2, l and L measurement positions. This is an illustrative diagram, not a scale drawing of the listed size. Exact 223507S dimensions are in the table below.

Specifications

Brand	KING TONY
Model	223507S
Type	Imperial 6-point deep hand socket
Square drive	1/4 inch
Hex opening	7/32 inch
Overall length L	50 mm
Opening-end diameter D1	8.7 mm
Drive-end diameter D2	11.8 mm
Internal dimension l, as illustrated	9 mm
Weight	21 g
Material / finish	Chrome-vanadium alloy steel / polished, chrome plated
Retention design	Four ball grooves
Manufacturer's specified standard	ANSI/ASME B107.1
Sales unit	One socket (顆)

Package Contents

223507S 7/32-inch imperial 6-point deep socket ×1
