KING TONY 223507M 1/4-inch Drive 7mm 6-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 223507M
Order code: Y8ETUL8
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$100.00/ 顆~~Was $140.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 223507M is a metric 7 mm, 6-point deep hand socket with a 1/4-inch square drive. Its 49.5 mm overall length suits applications that need a longer socket body, with a six-point opening for a 7 mm nut or bolt head. This is one individually priced socket, not a multi-size socket set.

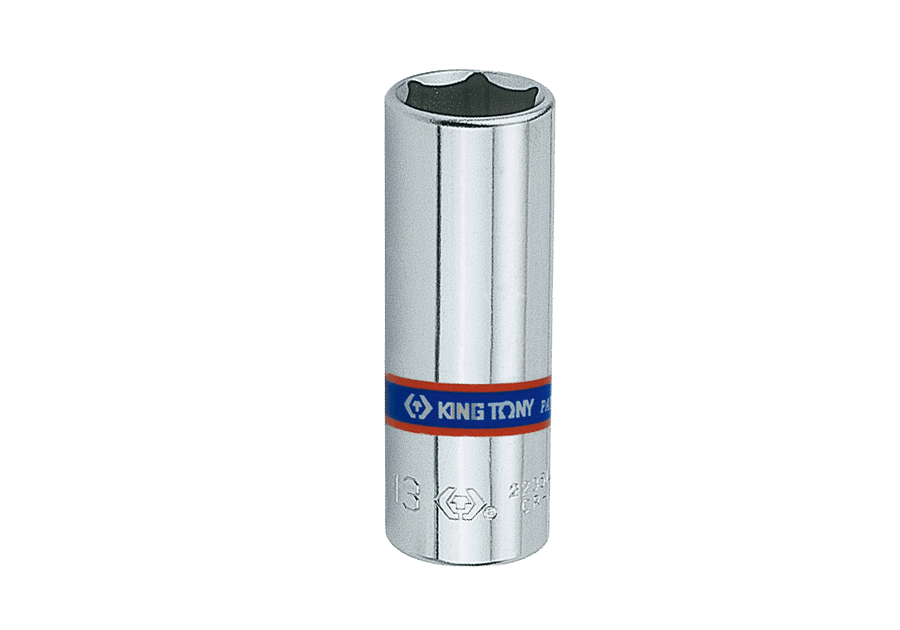

Manufacturer 2235M-series 6-point deep socket photograph marked 13 mm; this listing is the 7 mm 223507M socket, sold individually. — Manufacturer's 2235M-series representative photograph, with a visible 13 mm marking; it is not an exact 7 mm product photograph. This listing is the 223507M: a 1/4-inch drive, 7 mm metric 6-point deep socket, sold individually.

Features

1/4-inch square drive and metric 7 mm six-point opening.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves to engage the drive tool retention mechanism.
Manufacturer specification references DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Model	223507M
SKU	KT-223507M
Type	Metric 6-point deep hand socket
Square drive	1/4 inch
Socket opening	7 mm
Opening-end outside diameter D1	10.5 mm
Drive-end outside diameter D2	11.6 mm
Bore length l	12 mm
Overall length L	49.5 mm
Weight	23 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Standards	DIN 3124; ISO 2725-1
Selling unit	One socket (顆)

Manufacturer 2235M-series socket dimension diagram showing D1, D2, l and L; refer to the table for the dimensions of 223507M. — Manufacturer 2235M-series sectional dimension diagram, not a product photograph. Dimensions for 223507M: D1 10.5 mm, D2 11.6 mm, l 12 mm and L 49.5 mm.

Package contents

KING TONY 223507M 7 mm 6-point deep socket × 1
