KING TONY 223506S 3/16-inch Deep 6-Point Socket, 1/4-inch Drive

Brand: KING TONY
Manufacturer model number: 223506S
Order code: Y8E8W2W
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$100.00/ 顆~~Was $140.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 223506S is a 3/16-inch SAE six-point deep hand socket with a 1/4-inch square drive. Its 50 mm body provides the length of a deep socket for reaching hex nuts and bolt heads. Check both the fastener size and the drive size of your manual tool before selecting this socket.

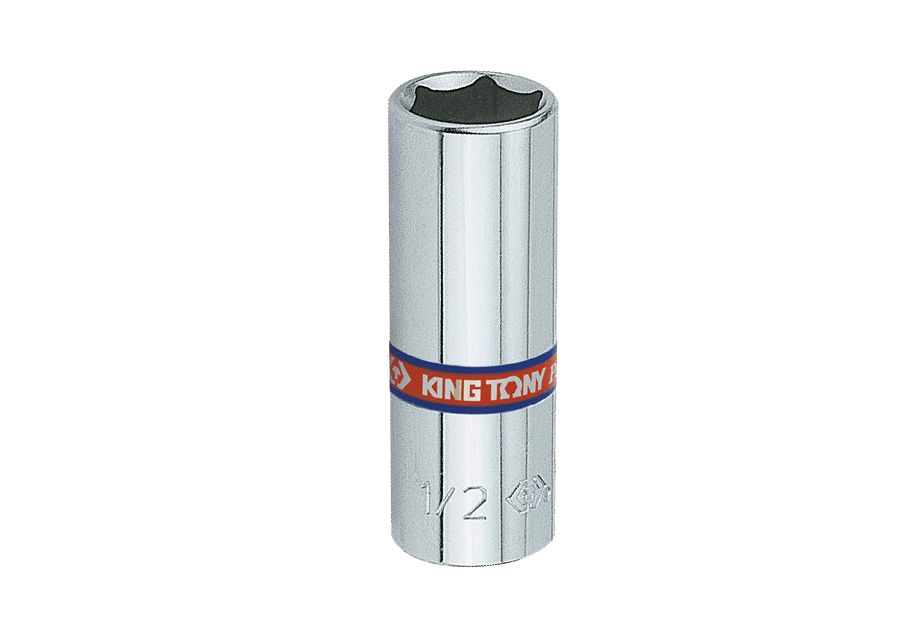

Manufacturer's KING TONY 2235S-series deep six-point socket photo, marked 1/2 inch; this 223506S listing is 3/16 inch with 1/4-inch drive, sold individually. — Manufacturer's 2235S-series representative image: the pictured socket is marked 1/2 inch, not the actual size of this item. This 223506S listing is a 3/16-inch deep six-point socket with 1/4-inch drive, sold individually.

Features

3/16-inch six-point opening for matching SAE hex fasteners.
1/4-inch square drive with the manufacturer-listed four-ball-groove retention feature.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Hand-socket design specified to ANSI/ASME B107.1.

KING TONY 2235S-series socket cross-section with D1, D2, l and L; corresponding 223506S dimensions are 7.9, 11.8, 7 and 50 mm. — Manufacturer's 2235S-series cross-section diagram, not a product photograph. The table below gives the exact D1, D2, l and L values for 223506S.

Specifications

Brand	KING TONY
Manufacturer model	223506S
SKU	KT-223506S
Square drive	1/4 inch (6.35 mm)
Socket size	3/16 inch (SAE)
Configuration	6-point deep hand socket
D1: socket-end outside diameter	7.9 mm
D2: drive-end outside diameter	11.8 mm
l: hex opening depth	7 mm
L: overall length	50 mm
Weight	20 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Standard	ANSI/ASME B107.1
Sales unit	One socket (顆)

What is included

KING TONY 223506S 3/16-inch deep six-point socket ×1
