Name: KING TONY 223055M 5.5 mm 12-Point Deep Socket, 1/4-Inch Drive
Brand: KING TONY
SKU: KT-223055M
Price: 100 TWD
Availability: InStock

KING TONY 223055M is a 5.5 mm metric twelve-point deep socket with a 1/4-inch square drive and a 50 mm overall length. This listing is for one socket, not a multi-size set.

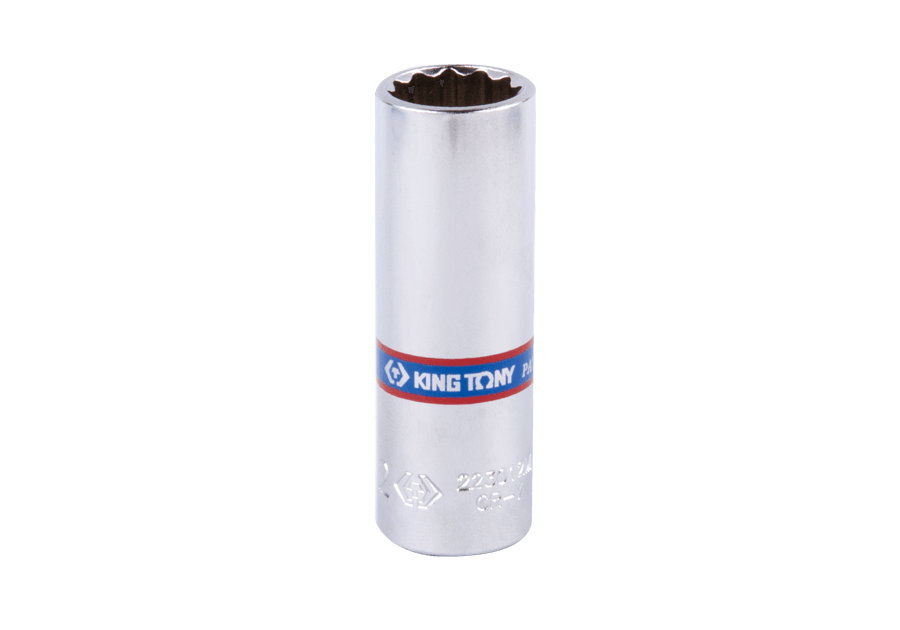

KING TONY 2230M-series representative twelve-point deep socket; pictured markings may differ; listed item is 223055M 5.5 mm, one socket — Manufacturer's 2230M-series representative photograph: the pictured markings may show a different model or size. This listing is the 223055M, 5.5 mm socket, sold individually.

Features

Twelve-point metric opening, sized for 5.5 mm fasteners.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves at the drive interface.
Manufacturer specifies DIN 3124 and ISO 2725-1.

KING TONY 2230M-series socket section diagram showing D1, D2, ℓ and L, not a physical product photograph — Manufacturer's 2230M-series section diagram identifies D1, D2, ℓ and L; it is not a product photograph. Dimensions for the 223055M are listed in the table below.

Specifications

Manufacturer model	223055M
Square drive	1/4 in
Socket size	5.5 mm
Opening profile	12-point, metric
Overall length L	50 mm
Working-end outer diameter D1	8.7 mm
Drive-end outer diameter D2	11.8 mm
Internal opening length ℓ	9 mm
Weight	20 g
Material / finish	Chrome-vanadium alloy steel; polished, chrome-plated
Standards	DIN 3124; ISO 2725-1
Selling unit	One socket

What's in the Box

223055M 5.5 mm twelve-point deep socket × 1

KING TONY 223055M is a 5.5 mm metric twelve-point deep socket with a 1/4-inch square drive and a 50 mm overall length. This listing is for one socket, not a multi-size set.

Features

Twelve-point metric opening, sized for 5.5 mm fasteners.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves at the drive interface.
Manufacturer specifies DIN 3124 and ISO 2725-1.

Specifications

Manufacturer model	223055M
Square drive	1/4 in
Socket size	5.5 mm
Opening profile	12-point, metric
Overall length L	50 mm
Working-end outer diameter D1	8.7 mm
Drive-end outer diameter D2	11.8 mm
Internal opening length ℓ	9 mm
Weight	20 g
Material / finish	Chrome-vanadium alloy steel; polished, chrome-plated
Standards	DIN 3124; ISO 2725-1
Selling unit	One socket

What's in the Box

223055M 5.5 mm twelve-point deep socket × 1
