KING TONY 223010M 1/4-inch Drive 10 mm 12-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 223010M
Order code: Y8E8OQ3
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$100.00/ 顆~~Was $140.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 223010M is a metric 10 mm, 12-point deep socket for 1/4-inch drive hand tools. It measures 50 mm overall with a 15 mm socket depth and pairs with a matching square-drive hand ratchet or socket tool. This listing is for one socket, not a multi-size set.

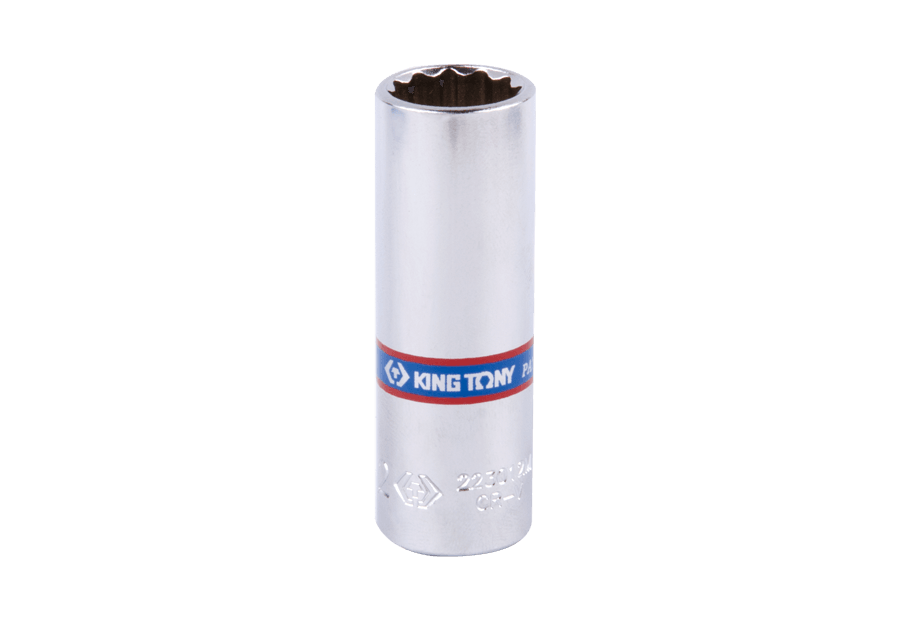

Manufacturer's KING TONY 2230M series deep twelve-point socket; pictured markings may differ. This 223010M listing is 10 mm, 1/4-inch drive, one socket. — Manufacturer's KING TONY 2230M series representative image; pictured model or size markings may differ. This 223010M listing is the 10 mm, 1/4-inch drive socket, sold individually.

Features and use

Metric 10 mm opening with a 12-point profile and 1/4-inch square drive.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves.
Manufacturer specifies DIN 3124 and ISO 2725-1.

KING TONY 2230M series dimension diagram; 223010M has 10 mm opening, D1/D2 14.5 mm, socket depth 15 mm and overall length 50 mm. — This 2230M series drawing identifies the dimension locations; it is not a product photograph. For 223010M, D1 and D2 are each 14.5 mm, ℓ (socket depth) is 15 mm, and L (overall length) is 50 mm.

Specifications

Brand	KING TONY
Manufacturer model	223010M
Type	Metric 12-point deep hand socket
Square drive	1/4 inch
Opening size	10 mm
Profile	12-point
Overall length L	50 mm
Socket depth ℓ	15 mm
Socket-end outside diameter D1	14.5 mm
Drive-end outside diameter D2	14.5 mm
Weight	36 g
Material	Chrome-vanadium alloy steel
Finish	Polished, chrome plated
Manufacturer-listed standards	DIN 3124, ISO 2725-1
Selling unit	One socket (顆)

What's in the Box

KING TONY 223010M 10 mm 12-point deep socket ×1
