Name: KING TONY 223009M 1/4 in Drive 9 mm 12-Point Deep Socket
Brand: KING TONY
SKU: KT-223009M
Price: 100 TWD
Availability: InStock

The KING TONY 223009M is a 9 mm metric 12-point deep socket for 1/4 in square-drive hand tools. Its 50 mm overall length provides access to recessed nuts or bolt heads. This listing is priced for one socket, not a multi-size set.

Features

9 mm 12-point opening with a 1/4 in square drive: match the socket size and drive to the fastener and hand tool.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for drive retention.
The manufacturer lists DIN 3124 and ISO 2725-1.

Dimension guide

Manufacturer 2230M-series socket section drawing with D1, D2, l and L labels; see the specification table for the actual 223009M dimensions.

This is the manufacturer's 2230M-series dimensional diagram, not a physical-product photograph. The actual 223009M dimensions appear in the table below.

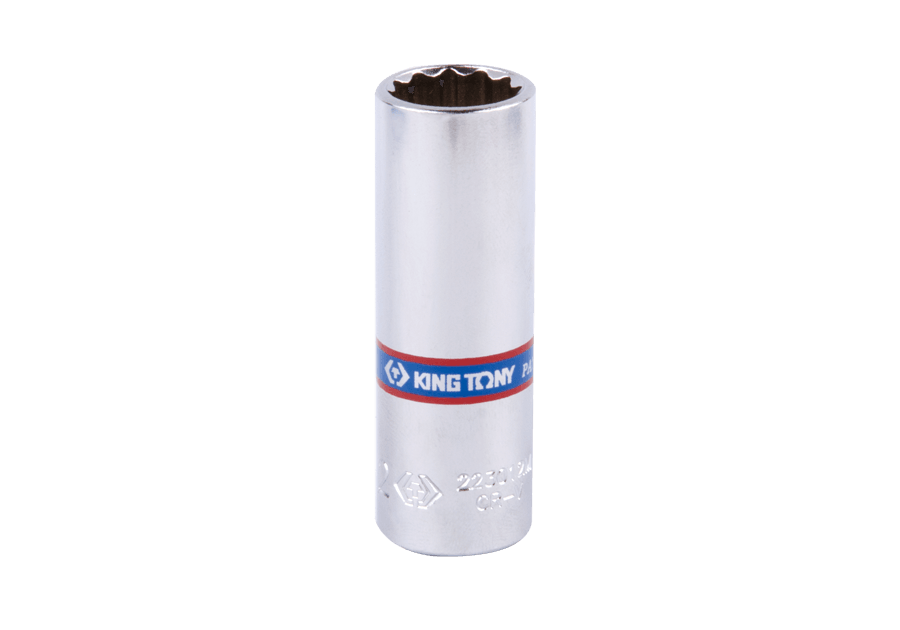

Manufacturer's KING TONY 2230M-series representative photograph of a 12-point deep socket; visible size or model markings may differ. This listing is 223009M, 9 mm, 1/4 in drive, sold as one socket.

The product gallery uses the manufacturer's 2230M-series representative image. Visible size or model markings may differ; this listing is model 223009M, a 9 mm socket with 1/4 in drive and 50 mm overall length, sold individually.

Specifications

Brand	KING TONY
Model	223009M
Square drive	1/4 in (6.35 mm)
Socket size	9 mm
Profile	Metric, 12-point
Overall length L	50 mm
Socket-end outside diameter D1	13.0 mm
Drive-end outside diameter D2	13.0 mm
Opening depth l	15 mm
Manufacturer-listed weight	28 g
Material and finish	Chrome vanadium alloy steel; polished, chrome plated
Manufacturer-listed standards	DIN 3124; ISO 2725-1
Sales unit	One socket (顆)

Sales contents

KING TONY 223009M 9 mm 12-point deep socket ×1

Features

9 mm 12-point opening with a 1/4 in square drive: match the socket size and drive to the fastener and hand tool.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for drive retention.
The manufacturer lists DIN 3124 and ISO 2725-1.

Dimension guide

This is the manufacturer's 2230M-series dimensional diagram, not a physical-product photograph. The actual 223009M dimensions appear in the table below.

Specifications

Brand	KING TONY
Model	223009M
Square drive	1/4 in (6.35 mm)
Socket size	9 mm
Profile	Metric, 12-point
Overall length L	50 mm
Socket-end outside diameter D1	13.0 mm
Drive-end outside diameter D2	13.0 mm
Opening depth l	15 mm
Manufacturer-listed weight	28 g
Material and finish	Chrome vanadium alloy steel; polished, chrome plated
Manufacturer-listed standards	DIN 3124; ISO 2725-1
Sales unit	One socket (顆)

Sales contents

KING TONY 223009M 9 mm 12-point deep socket ×1
