KING TONY 223007M 7 mm 1/4-inch Drive 12-Point Metric Deep Socket

Brand: KING TONY
Manufacturer model number: 223007M
Order code: Y8EAZU3
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$100.00/ 顆~~Was $140.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 223007M is a 7 mm, 12-point metric deep socket with a 1/4-inch square drive and a 50 mm overall length. Use it with a matching manual ratchet or extension, checking the fastener size and available working clearance. This listing is sold as one individual socket, not a multi-size socket set.

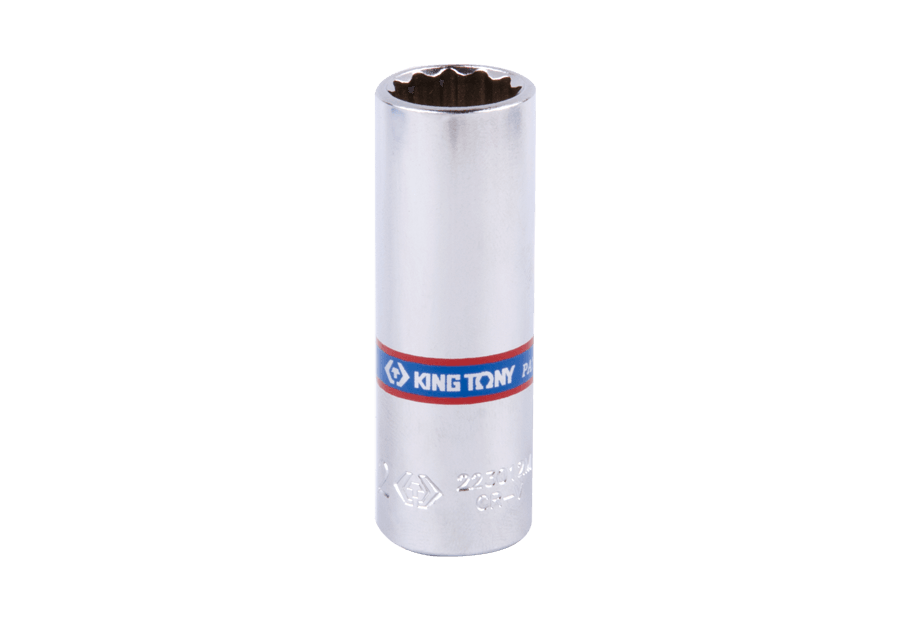

Manufacturer's KING TONY 2230M-series 12-point deep socket representative image; markings may differ. This listing is the 223007M, 7 mm, 1/4-inch drive socket, sold individually — Manufacturer's KING TONY 2230M-series representative image; the pictured markings may differ and this is not an exact 7 mm product photograph. This listing is the 223007M, 7 mm, 1/4-inch drive socket, sold individually.

Features

7 mm metric opening with a 12-point profile.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for use with a matching drive tool.
Manufacturer lists DIN 3124 and ISO 2725-1 standards.

Specifications

Brand / model	KING TONY / 223007M
Square drive	1/4 inch
Opening size / profile	7 mm / metric 12-point
Outside diameter D1	10.3 mm
Outside diameter D2	11.8 mm
Dimension ℓ (see drawing)	15 mm
Overall length L	50 mm
Manufacturer-listed weight	22 g
Material / finish	Chrome vanadium alloy steel / polished, chrome plated
Manufacturer-listed standards	DIN 3124, ISO 2725-1
Sales unit	One socket (workbook UOM: 顆)

KING TONY 2230M-series deep socket sectional dimension drawing labeled D1, D2, ℓ and L; see the specification table for 223007M values — Manufacturer's 2230M-series dimension drawing, not a product photograph. The values for D1, D2, ℓ and L for model 223007M are listed in the table above.

What's in the Box

223007M 7 mm 12-point metric deep socket ×1

Reviews & Q&A

No reviews yet. Be the first to review this product.

Recently viewed

Features

7 mm metric opening with a 12-point profile.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for use with a matching drive tool.
Manufacturer lists DIN 3124 and ISO 2725-1 standards.

Specifications

Brand / model	KING TONY / 223007M
Square drive	1/4 inch
Opening size / profile	7 mm / metric 12-point
Outside diameter D1	10.3 mm
Outside diameter D2	11.8 mm
Dimension ℓ (see drawing)	15 mm
Overall length L	50 mm
Manufacturer-listed weight	22 g
Material / finish	Chrome vanadium alloy steel / polished, chrome plated
Manufacturer-listed standards	DIN 3124, ISO 2725-1
Sales unit	One socket (workbook UOM: 顆)

What's in the Box

223007M 7 mm 12-point metric deep socket ×1

JACO自營旗艦店

KING TONY 223007M 7 mm 1/4-inch Drive 12-Point Metric Deep Socket

JACO自營旗艦店

Reviews & Q&A

Similar products

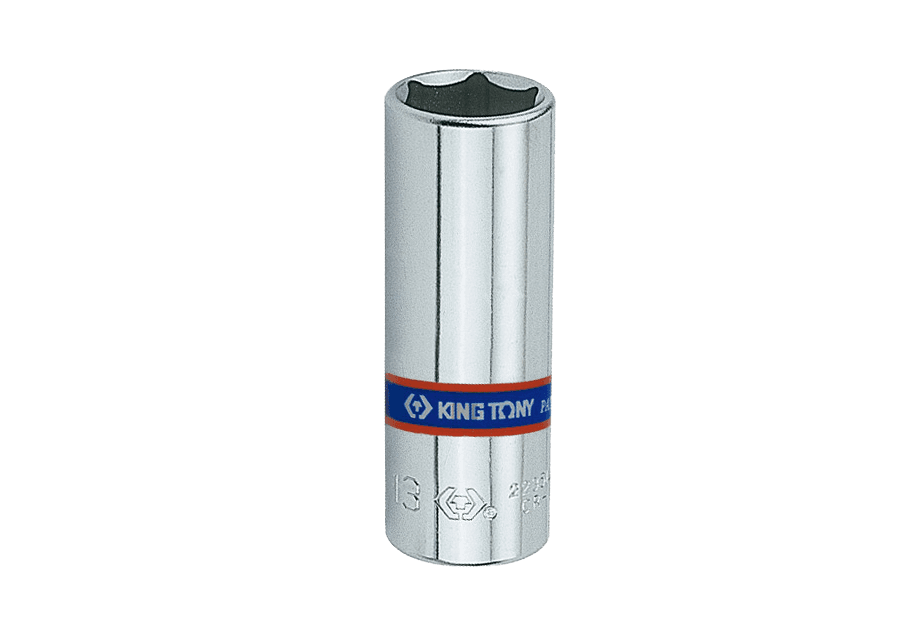

KING TONY 223507M 1/4-inch Drive 7mm 6-Point Deep Socket
