KING TONY 223006M 1/4-inch Drive 6 mm Metric 12-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 223006M
Order code: Y8EN7TY
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$100.00/ 顆~~Was $140.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 223006M is a 6 mm metric 12-point deep socket with a 1/4-inch square drive and 50 mm overall length. Its long body suits manual fastening tasks requiring extended reach. Match the fastener size and the tool drive before use. This listing is for one socket, not a multi-size set.

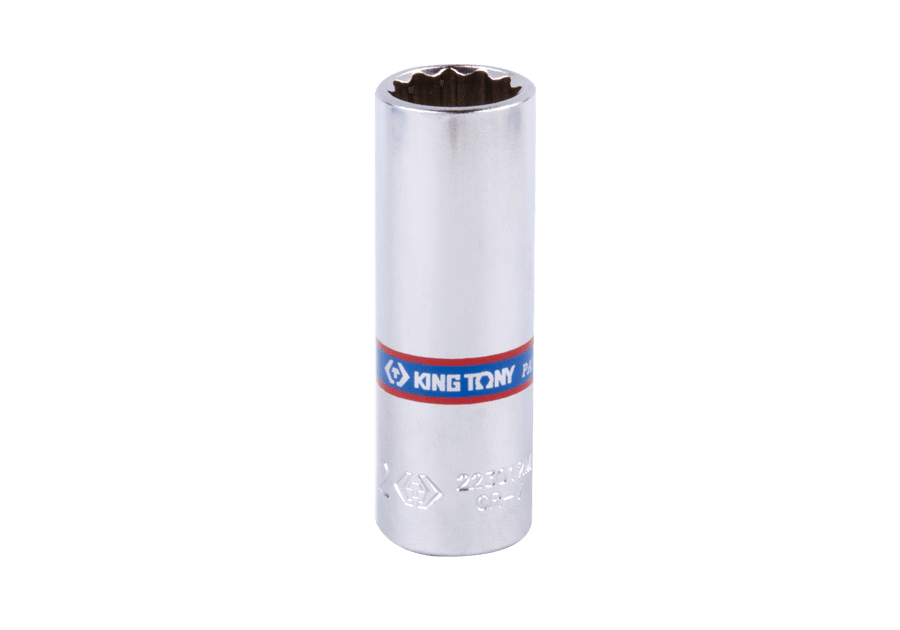

KING TONY 2230M-family representative deep socket photo; this 223006M listing is 6 mm and pictured markings may differ — Manufacturer's representative image for the KING TONY 2230M family; markings may show another size. This listing is the 6 mm 223006M deep socket, sold individually.

Features

6 mm metric 12-point opening for use with 1/4-inch square-drive hand tools.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for drive retention.
Manufactured to DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Model	223006M
SKU	KT-223006M
Square drive	1/4 inch (6.35 mm)
Socket opening	6 mm, metric 12-point
Overall length L	50 mm
Socket-end diameter D1	9.2 mm
Drive-end diameter D2	11.8 mm
Socket depth ℓ	9 mm
Weight	21 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention design	Four ball-retaining grooves
Standards	DIN 3124, ISO 2725-1
Price unit	顆 (one socket)

KING TONY 2230M deep socket dimension diagram showing D1, D2, ℓ and L; see the specification table for 223006M values — This family diagram identifies measurement positions; it is not a photograph or a scale drawing of 223006M. For this model, L is 50 mm, ℓ is 9 mm, D1 is 9.2 mm and D2 is 11.8 mm.

Package contents

One KING TONY 223006M 6 mm 12-point deep socket.
