The KING TONY 223005M is a 5 mm metric twelve-point deep socket with a 1/4-inch square drive and a 50 mm overall length. Use it with a matching hand ratchet or extension for small metric nut applications. This listing is for one socket, not a multi-size socket set.

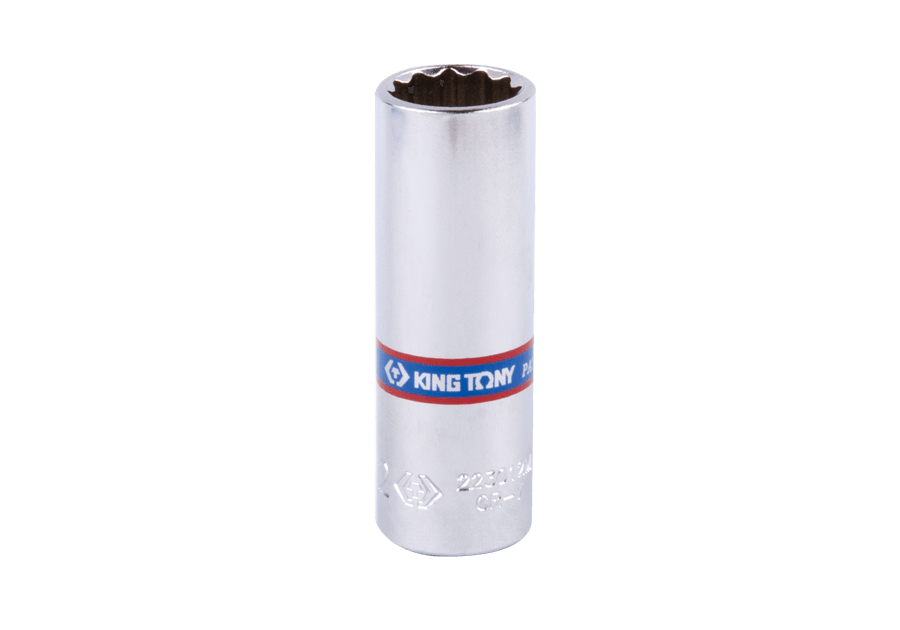

Manufacturer's KING TONY 2230M-series twelve-point deep socket image; pictured markings do not identify this size. This 223005M listing is 5 mm with a 1/4-inch drive, sold individually. — Manufacturer's representative image of the KING TONY 2230M series; the pictured size markings may differ. This 223005M listing is the 5 mm socket with a 1/4-inch square drive and 50 mm overall length, sold individually.

Features

Metric twelve-point working end: select the 5 mm size to match the nut.
Deep format with a 50 mm overall length and 7 mm socket depth, as defined in the manufacturer's dimension drawing.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball grooves for positioning with compatible 1/4-inch hand-drive tools.
The manufacturer specifies DIN 3124 and ISO 2725-1.

KING TONY 2230M-series dimension-reference drawing. For 223005M: D1 8.0 mm, D2 11.8 mm, socket depth 7 mm and overall length 50 mm. — This 2230M-series sectional drawing identifies dimension positions; it is not a product photograph. The exact 223005M values are listed in the specification table.

Specifications

Brand / model	KING TONY / 223005M
SKU	KT-223005M
Square drive	1/4 inch
Working end / size	Metric twelve-point / 5 mm
Socket-end outer diameter D1	8.0 mm
Drive-end outer diameter D2	11.8 mm
Socket depth ℓ	7 mm
Overall length L	50 mm
Material	Chrome-vanadium alloy steel
Finish	Polished, chrome-plated
Positioning design	Four ball grooves
Manufacturer-listed standards	DIN 3124, ISO 2725-1
Sales unit	One socket (顆)
Weight	20 g

What's in the Box

223005M 5 mm metric twelve-point deep socket × 1

Reviews & Q&A

No reviews yet. Be the first to review this product.

Recently viewed

Features

Metric twelve-point working end: select the 5 mm size to match the nut.
Deep format with a 50 mm overall length and 7 mm socket depth, as defined in the manufacturer's dimension drawing.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball grooves for positioning with compatible 1/4-inch hand-drive tools.
The manufacturer specifies DIN 3124 and ISO 2725-1.

Specifications

Brand / model	KING TONY / 223005M
SKU	KT-223005M
Square drive	1/4 inch
Working end / size	Metric twelve-point / 5 mm
Socket-end outer diameter D1	8.0 mm
Drive-end outer diameter D2	11.8 mm
Socket depth ℓ	7 mm
Overall length L	50 mm
Material	Chrome-vanadium alloy steel
Finish	Polished, chrome-plated
Positioning design	Four ball grooves
Manufacturer-listed standards	DIN 3124, ISO 2725-1
Sales unit	One socket (顆)
Weight	20 g

What's in the Box

223005M 5 mm metric twelve-point deep socket × 1

JACO自營旗艦店

KING TONY 223005M 1/4-inch Drive 5 mm 12-Point Deep Socket

JACO自營旗艦店

Reviews & Q&A

Similar products

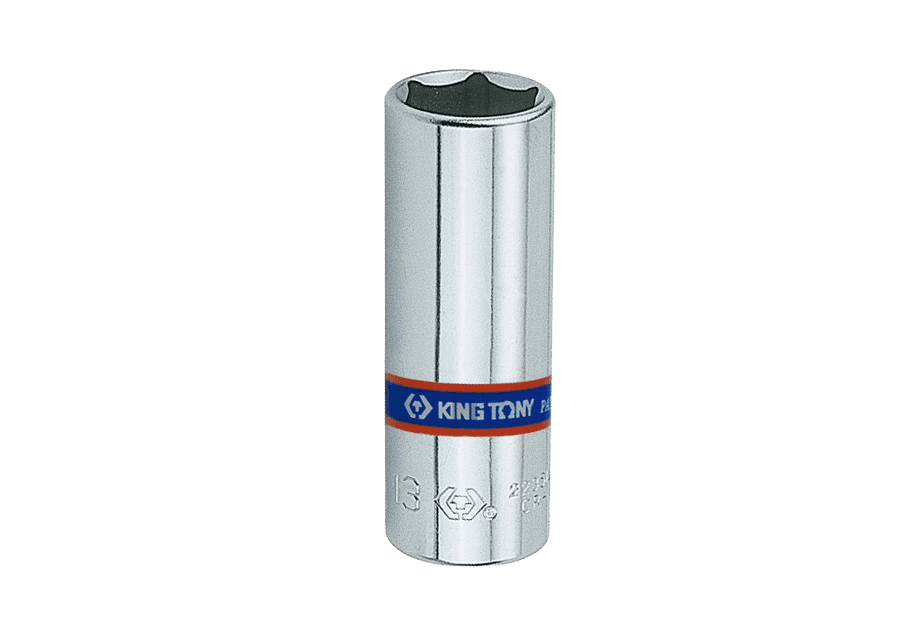

KING TONY 223505M 1/4 in Drive 6-Point Deep Socket, 5 mm
