KING TONY 203505S 1/4-Inch Drive Hex Bit Socket, H5/32 Inch
Hand Tools
$140.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$100.00/ 顆Was $140.00-29%

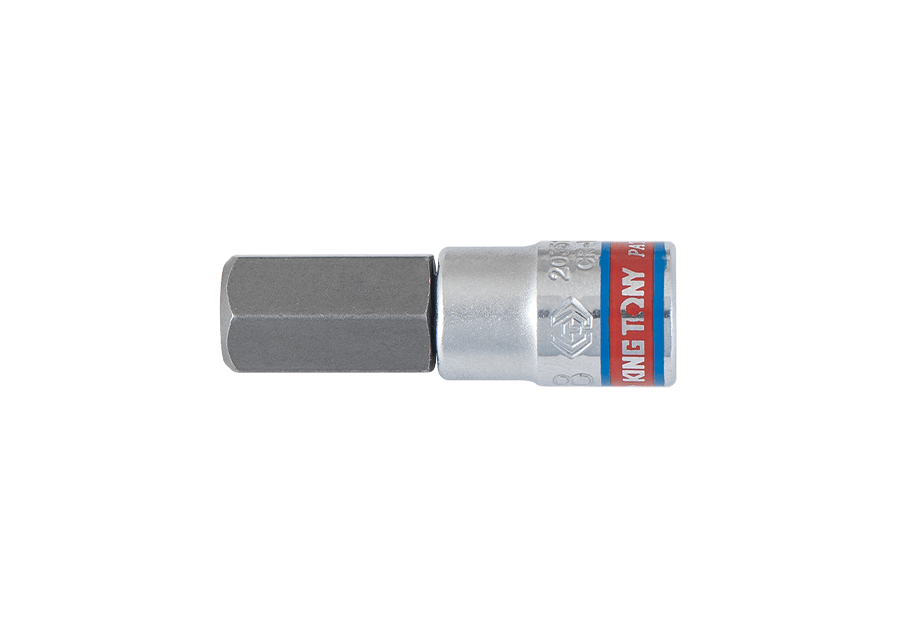

The KING TONY 203510S is an imperial H5/16-inch hex bit socket with a 1/4-inch square drive for matching manual socket tools and hex-recess screws. This model is 37 mm long and is sold as one individual socket, not a tool set.

The H5/16-inch tip is for screws with a matching hex recess. Check both the screw size and the 1/4-inch square-drive connection when selecting the tool.
The socket is chrome vanadium alloy steel and the bit is S2 silicon alloy steel. The manufacturer specifies a polished, chrome-plated finish and DIN 7422/3120 standards.

| Brand | KING TONY |
|---|---|
| Manufacturer model | 203510S |
| SKU | KT-203510S |
| Drive | 1/4-inch square drive |
| Bit profile and size | Imperial hex, H5/16-inch |
| Overall length L | 37 mm |
| Weight | 19 g |
| Socket material | Chrome vanadium alloy steel |
| Bit material | S2 silicon alloy steel |
| Finish | Polished, chrome plated |
| Manufacturer-listed standards | DIN 7422 / DIN 3120 |
| Sales unit | One piece |
