Name: KING TONY 203505S 1/4-Inch Drive Hex Bit Socket, H5/32 Inch
Brand: KING TONY
SKU: KT-203505S
Price: 100 TWD
Availability: InStock

The KING TONY 203505S is an H5/32-inch hex bit socket with a 1/4-inch square-drive connection for matching manual drive tools and imperial hex-socket screws. The H5/32-inch measurement specifies the working hex tip, not the drive connection. This exact model is 37 mm long and is sold as one socket.

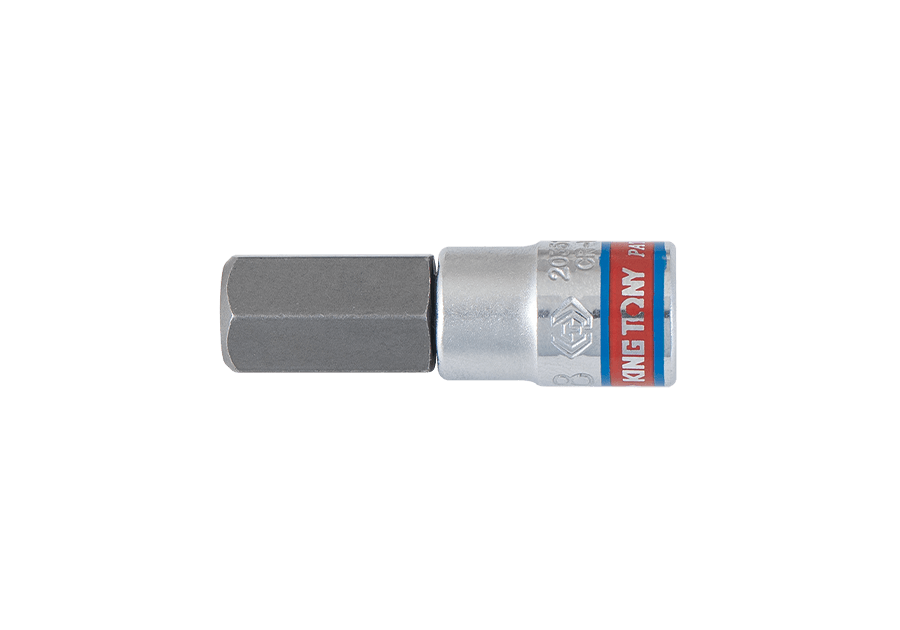

Manufacturer-supplied KING TONY 2035S-series representative hex bit socket photo; markings may differ. This 203505S listing is H5/32 inch, 1/4-inch square drive, sold individually. — Manufacturer's representative 2035S-series image, not a photograph verified to show this exact size. Physical size or model markings may differ. This listing is model 203505S: H5/32-inch hex tip, 1/4-inch square drive, 37 mm overall length, sold as one socket.

Features and application

The socket body is chrome-vanadium alloy steel, while the bit is S2 silicon-alloy steel, as specified by the manufacturer.
The socket has a polished, chrome-plated finish and an H5/32-inch hex working tip.
The manufacturer lists DIN 7422/3120. Match both the screw recess size and the square-drive connection before selecting the tool.

Manufacturer's 2035S-series overall-length L diagram; this 203505S is H5/32-inch hex, 1/4-inch square drive and 37 mm long. — The manufacturer's 2035S-series technical diagram defines overall length L; it is not a to-scale photograph of this exact size. Model 203505S has L = 37 mm and an H5/32-inch hex tip. Use the specification table for the actual dimensions.

Specifications

Brand	KING TONY
Model	203505S
Tool type	Imperial hex bit socket
Square drive	1/4 inch
Hex tip size	H5/32 inch
Overall length L	37 mm
Weight	15 g
Socket material	Chrome-vanadium alloy steel
Bit material	S2 silicon-alloy steel
Socket finish	Polished, chrome plated
Manufacturer-listed standards	DIN 7422/3120
Selling unit	One socket (顆)

What's in the Box

203505S H5/32-inch hex bit socket ×1

This is a single bit socket, not a socket set or a socket-rail kit.

Features and application

The socket body is chrome-vanadium alloy steel, while the bit is S2 silicon-alloy steel, as specified by the manufacturer.
The socket has a polished, chrome-plated finish and an H5/32-inch hex working tip.
The manufacturer lists DIN 7422/3120. Match both the screw recess size and the square-drive connection before selecting the tool.

Specifications

Brand	KING TONY
Model	203505S
Tool type	Imperial hex bit socket
Square drive	1/4 inch
Hex tip size	H5/32 inch
Overall length L	37 mm
Weight	15 g
Socket material	Chrome-vanadium alloy steel
Bit material	S2 silicon-alloy steel
Socket finish	Polished, chrome plated
Manufacturer-listed standards	DIN 7422/3120
Selling unit	One socket (顆)

What's in the Box

203505S H5/32-inch hex bit socket ×1

This is a single bit socket, not a socket set or a socket-rail kit.
