Name: KING TONY 203255 1/4-inch Drive Slotted Bit Socket 5.5 mm
Brand: KING TONY
SKU: KT-203255
Price: 90 TWD
Availability: InStock

The KING TONY 203255 slotted bit socket connects a 5.5 mm wide, 1.0 mm thick flat-blade tip to a 1/4-inch square-drive hand tool. Match both blade width and thickness to the screw slot before use.

This model is 37 mm long and weighs 15 g. The price is for one individual bit socket, not a multi-piece set.

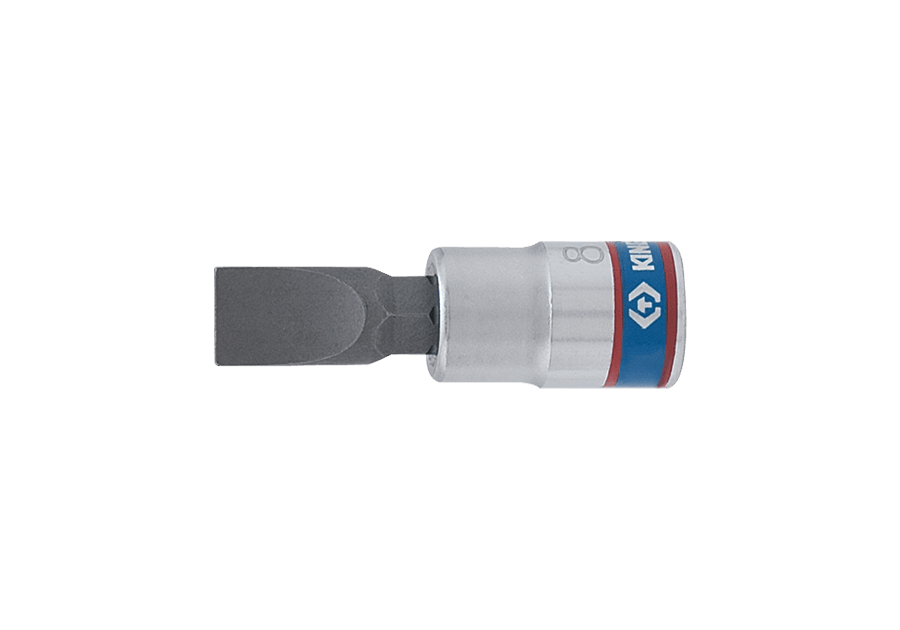

Manufacturer's KING TONY 2032-series representative slotted bit socket marked 8 mm; model 203255 is 5.5 mm and sold individually — Manufacturer's KING TONY 2032-series representative photograph. The pictured socket is marked 8 mm, not the actual-size photograph of this listing. Model 203255 has a 5.5 mm wide, 1.0 mm thick tip and is sold individually.

Tool features

1/4-inch square drive for compatible manual ratchets and socket accessories.
Chrome vanadium alloy-steel socket body with an S2 silicon alloy-steel bit.
Polished, chrome-plated finish. Tip dimensions are taken from the manufacturer's exact 203255 specification row.

KING TONY 2032-series slotted bit socket overall-length L diagram; model 203255 is 37 mm long — The manufacturer's 2032-series technical diagram identifies overall length as L. Model 203255 measures 37 mm overall. This is a measurement-location diagram, not a product photograph.

Product specifications

Model	203255
Drive	1/4-inch square drive
Tip profile	Slotted
Tip width	5.5 mm
Tip thickness	1.0 mm
Overall length L	37 mm
Weight	15 g
Socket material	Chrome vanadium alloy steel
Bit material	S2 silicon alloy steel
Finish	Polished, chrome plated
Sold unit	One individual socket (顆)

What's in the Box

203255 5.5 mm slotted bit socket ×1

The KING TONY 203255 slotted bit socket connects a 5.5 mm wide, 1.0 mm thick flat-blade tip to a 1/4-inch square-drive hand tool. Match both blade width and thickness to the screw slot before use.

This model is 37 mm long and weighs 15 g. The price is for one individual bit socket, not a multi-piece set.

Tool features

1/4-inch square drive for compatible manual ratchets and socket accessories.
Chrome vanadium alloy-steel socket body with an S2 silicon alloy-steel bit.
Polished, chrome-plated finish. Tip dimensions are taken from the manufacturer's exact 203255 specification row.

Product specifications

Model	203255
Drive	1/4-inch square drive
Tip profile	Slotted
Tip width	5.5 mm
Tip thickness	1.0 mm
Overall length L	37 mm
Weight	15 g
Socket material	Chrome vanadium alloy steel
Bit material	S2 silicon alloy steel
Finish	Polished, chrome plated
Sold unit	One individual socket (顆)

What's in the Box

203255 5.5 mm slotted bit socket ×1
