Name: KING TONY 203103 1/4-inch Drive PH3 Phillips Bit Socket
Brand: KING TONY
SKU: KT-203103
Price: 90 TWD
Availability: InStock

The KING TONY 203103 is a PH3 Phillips bit socket with a 1/4-inch square drive for a matching hand ratchet or handle. Its overall length is 37 mm. Select it for PH3 Phillips screws and check the screw-head size before use. This listing is for one bit socket, not a multi-size set.

Features

PH3 Phillips tip with a 1/4-inch square-drive connection.
Chrome vanadium alloy steel socket and S2 silicon alloy steel bit.
Polished, chrome-plated socket finish.
The manufacturer lists DIN ISO 8764 for this series.

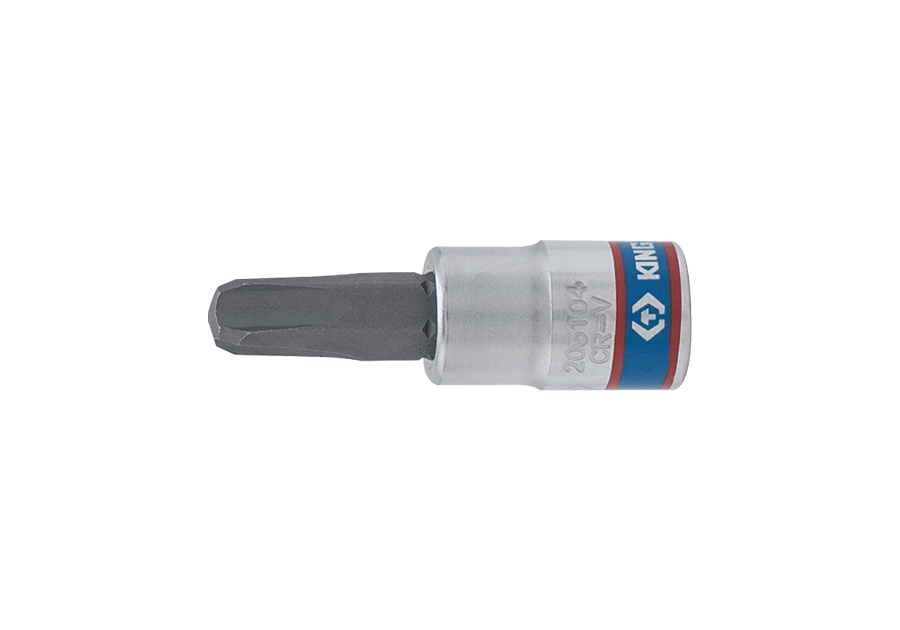

Manufacturer 2031-series representative image marked 203104 (PH4); this listing is one 203103 PH3 Phillips bit socket — Manufacturer-supplied representative image of the same-design KING TONY 2031 series. The photographed socket is marked 203104 (PH4); this is not an exact-size photograph of the listed item. The actual product is 203103, PH3, 1/4-inch square drive, 37 mm overall length, sold individually.

KING TONY 2031-series total-length L diagram; the listed 203103 has L = 37 mm — The manufacturer diagram defines L as the overall distance from the bit tip to the rear of the socket. The exact 203103 specification row gives L = 37 mm. The diagram is illustrative, not to scale.

Specifications

Brand	KING TONY
Manufacturer model	203103
SKU	KT-203103
Square drive	1/4 inch
Bit profile / size	Phillips PH3
Overall length L	37 mm
Weight	15 g
Socket material	Chrome vanadium alloy steel (Cr-V)
Bit material	S2 silicon alloy steel
Socket finish	Polished, chrome plated
Manufacturer-listed standard	DIN ISO 8764
Sale unit	One socket; worksheet UOM: 顆

Package Contents

203103 PH3 Phillips bit socket ×1

Features

PH3 Phillips tip with a 1/4-inch square-drive connection.
Chrome vanadium alloy steel socket and S2 silicon alloy steel bit.
Polished, chrome-plated socket finish.
The manufacturer lists DIN ISO 8764 for this series.

Specifications

Brand	KING TONY
Manufacturer model	203103
SKU	KT-203103
Square drive	1/4 inch
Bit profile / size	Phillips PH3
Overall length L	37 mm
Weight	15 g
Socket material	Chrome vanadium alloy steel (Cr-V)
Bit material	S2 silicon alloy steel
Socket finish	Polished, chrome plated
Manufacturer-listed standard	DIN ISO 8764
Sale unit	One socket; worksheet UOM: 顆

Package Contents

203103 PH3 Phillips bit socket ×1
