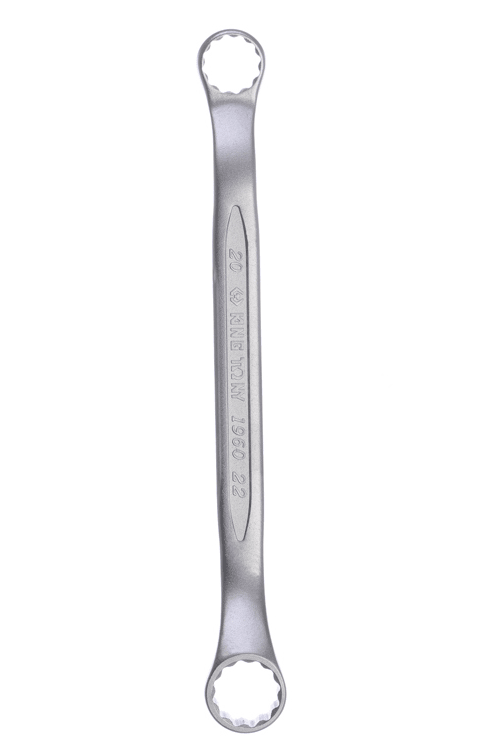

Name: KING TONY 19602022 20 × 22 mm 45° Offset Ring Wrench
Brand: KING TONY
SKU: KT-19602022
Price: 500 TWD
Availability: InStock

The KING TONY 19602022 is a metric double-ring wrench with 20 mm and 22 mm ends. Its 45° offset heads place the handle away from the working plane, while the overall length is 270 mm. It is intended for manual tightening and loosening during assembly and maintenance. This listing is for one wrench, not a multi-piece wrench set.

Features

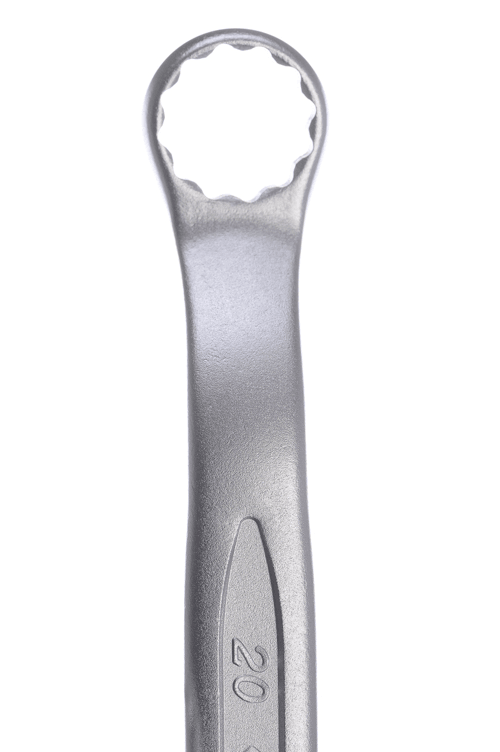

Close-up of the 20 mm 12-point thin-wall ring end of KING TONY 19602022

Two metric sizes with thin-wall ring ends

The 12-point ring ends provide 20 mm and 22 mm sizes on a single tool. The thin-wall design helps reach fasteners where surrounding clearance is limited. Check the fastener size across flats before selecting the wrench.

45° offset ring ends keep the handle displaced from the working ends.
Chrome vanadium alloy steel with a chrome-plated finish.
Metric model 19602022 conforms to DIN 838.

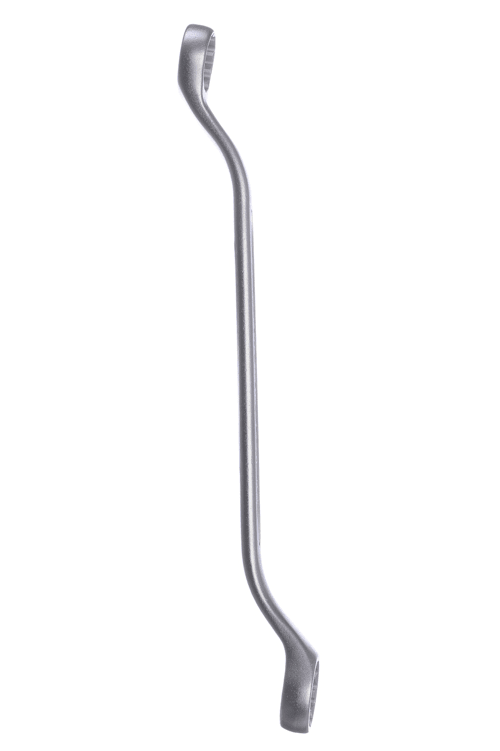

45° offset geometry

Specifications

Brand	KING TONY
Model	19602022
Tool type	45° offset double-ring wrench
Ring sizes	20 × 22 mm
Measurement system	Metric
Ring profile	12-point, thin-wall
Ring offset	45°
Overall length L	270 mm
Material	Chrome vanadium alloy steel
Finish	Chrome plated
Standard	DIN 838
Selling unit	One wrench

Contents per selling unit

KING TONY 19602022 20 × 22 mm 45° offset ring wrench × 1

Features

Two metric sizes with thin-wall ring ends

45° offset ring ends keep the handle displaced from the working ends.
Chrome vanadium alloy steel with a chrome-plated finish.
Metric model 19602022 conforms to DIN 838.

45° offset geometry

Specifications

Brand	KING TONY
Model	19602022
Tool type	45° offset double-ring wrench
Ring sizes	20 × 22 mm
Measurement system	Metric
Ring profile	12-point, thin-wall
Ring offset	45°
Overall length L	270 mm
Material	Chrome vanadium alloy steel
Finish	Chrome plated
Standard	DIN 838
Selling unit	One wrench

Contents per selling unit

KING TONY 19602022 20 × 22 mm 45° offset ring wrench × 1
